Description

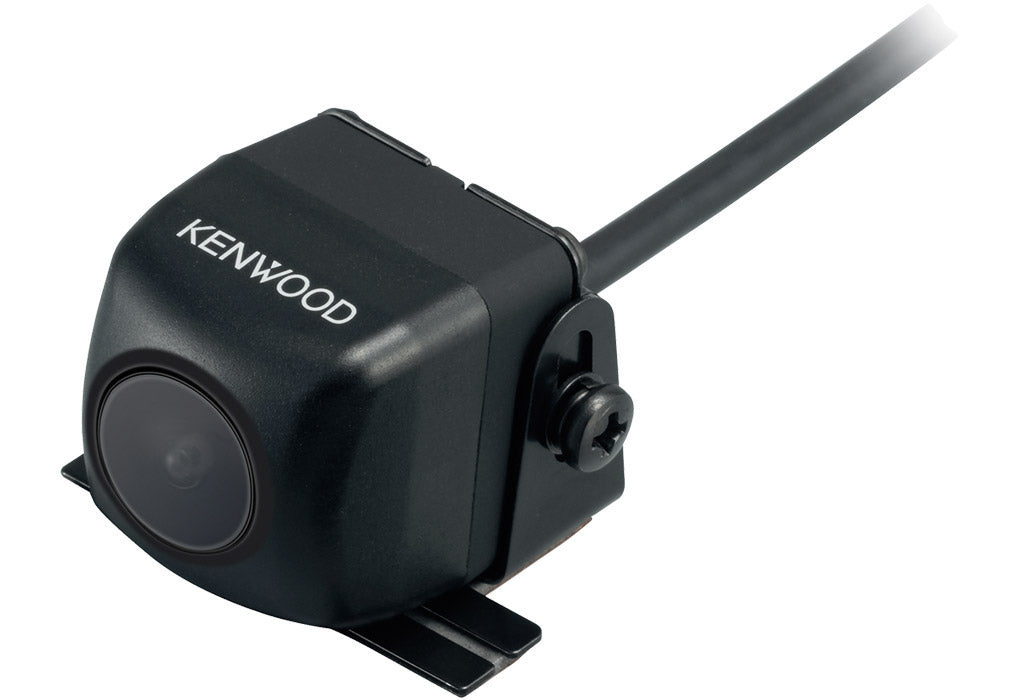

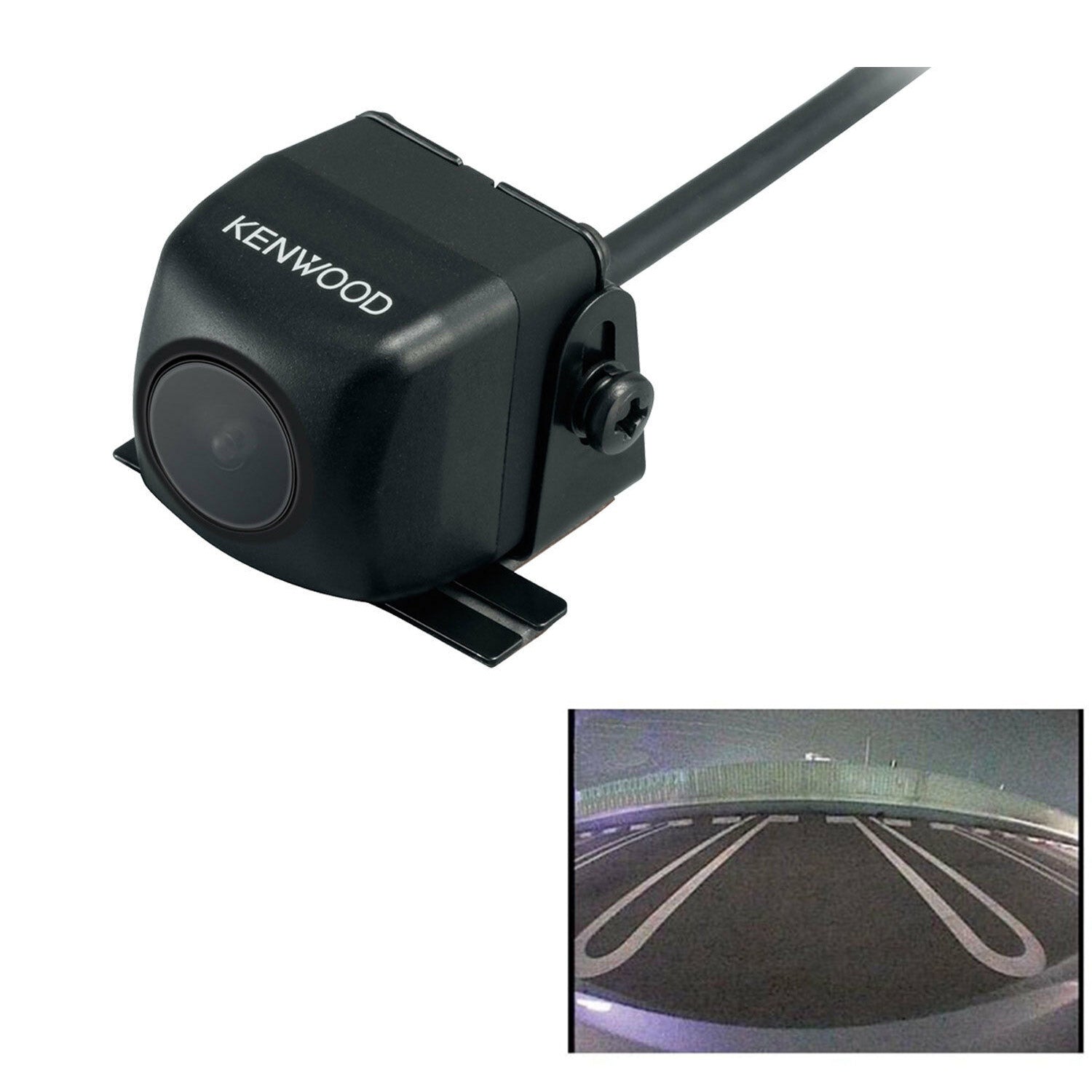

Compact rear-view camera with NTSC mirror-image output, flexible mounting base and 9m power/video connection cable. Waterproof housing. Requires a compatible display/input and correct installation wiring; check any receiver-specific camera adapter requirements. No screen is included.
Supply and fitting
Choose supply only or optional camera installation using the selector above. Confirm your vehicle, model year and installed stereo before booking. Extra adapters, wiring, mounting work and labour beyond the selected allowance are quoted separately.
Reversing cameras are a driver aid. Always check the surroundings directly; camera coverage and image quality depend on the mounting position, lighting and conditions.
Compatibility and installation
Subject to vehicle and stereo compatibility. Optional Swansea workshop installation with a compatible stereo adds 2 hours labour (£192 including VAT), subject to installation circumstances. Any extra adapters, parts or labour will be quoted and agreed before proceeding.
Compatible Kenwood receivers
- Kenwood DNX9190DABS EX-DEMO offer
- Kenwood DNX7190DABS EX-DEMO offer
- Kenwood DMX7722DABS
- Kenwood DMX9724XDS
- Kenwood DMX-F920DS
- Kenwood DMX8021DABS
- Kenwood DMX7525DABS
- Kenwood DMX80AXS
- Kenwood DMX6523DABS
- Kenwood DMX5023DABS
These receivers are compatible alternatives; only one suitable receiver is needed. Do not buy another receiver if a compatible one is already installed or included in your package. Camera mounting, required wiring or adapters and camera installation must be checked for the exact vehicle and receiver. These extras are separate unless expressly included; stereo fitting does not automatically include camera fitting.
JVC receivers with compatible rear-camera inputs
The CMOS-230 standard-definition NTSC RCA video output matches the rear-camera input on these JVC models:
- JVC KD-X561DBT
- JVC KW-M595DBT
- JVC KW-M695DBW
- JVC KW-M593BT
- JVC KW-M180DBT
- JVC KW-M180BT
- JVC KW-M875DBW
- JVC KW-M795DBW
- JVC KW-Z900DBW
Use the receiver’s dedicated rear-camera input. The camera still needs its correctly fused switched power and earth connections, and the receiver needs the correct reverse-signal connection and camera settings. Confirm vehicle mounting, cable routing and sufficient cable length before ordering installation. This is an aftermarket camera option, not a factory-camera retention adapter or an HD camera. Choose one compatible receiver only, and do not add the camera again if it is already selected with your stereo.
UK base price: £155.88 including VAT (£129.90 excluding VAT). Selected options or extras may change the total.
