Kenwood DMX9724XDS 10.1-inch Floating CarPlay & Android Auto Receiver

Kenwood DMX9724XDS 10.1-inch Floating CarPlay & Android Auto Receiver

£1,217.12 inc VAT

The displayed price includes one DMX9724XDS receiver and display assembly. Cameras and optional installation extension cables are not included. Vehicle-specific installation is available by quotation.

Optional Kenwood integrated dashcam

Add the Kenwood DRV-N520 for compatible receiver-screen control and recording playback. Camera hardware only; professional wiring and receiver setup are required and fitting is quoted separately. The camera uses the receiver’s dashboard-camera video/interface connections. Check camera-input allocation before combining it with another front camera, especially on DNX7190DABS and DNX9190DABS.

  • Add Kenwood DRV-N520 dashcam *

    Optional camera hardware for this exact Kenwood receiver model. Supplied power harness requires ground, switched accessory and constant battery power. Configure the receiver’s dashboard-camera input. Camera fitting is separate from any standard stereo-installation option.

Optional DMX9724XDS display extension

  • Add the DMX9724XDS display extension cable set *

    Optional KCA-A150EX set for a separate-chassis installation of the Kenwood DMX9724XDS. Includes one display video cable and one display power cable, each 1.5m. One set per receiver when selected. This is not a universal HDMI lead, mounting kit or vehicle wiring loom. The installer must confirm secure mounting, cable routing, display clearance and the permitted receiver orientation; an installation setting may need adjustment. Hardware only: separate-chassis fitting and any additional parts or labour are quoted and agreed separately. We fit equipment supplied by Lehane Autos, not customer-supplied parts.

Optional Kenwood HDMI connection cable

  • Add a Kenwood HDMI cable *

    Optional KCA-HD200 1.8m cable for this receiver's micro-HDMI Type D input, with a standard HDMI Type A plug at the source end. One cable per receiver when selected. A compatible HDMI source and any phone-specific HDMI adapter are required separately; this cable is not a USB adapter and does not guarantee phone mirroring or streaming-app support. Follow the receiver instructions and refit its HDMI cable retaining fixture. Hardware only: any cable routing or installation is quoted separately and is not added by this option. We fit equipment supplied by Lehane Autos, not customer-supplied parts.

Add a compatible Kenwood reversing camera?

Optional camera hardware for this receiver. Choose one camera or No camera. Kenwood lists CMOS-230 and CMOS-320 for this receiver; CMOS-740HD requires its supported HD-TVI rear-camera input. Receiver compatibility does not confirm vehicle fitment or retain an original factory camera. Mounting, cable routing and length, suitable power, reverse trigger and any adapters must be checked for your vehicle. Camera installation is separate from stereo installation and is quoted and agreed before work.

  • Optional Kenwood reversing camera *

    CMOS-230 and CMOS-320 use standard NTSC composite video. CMOS-740HD uses the supported HD-TVI rear-camera input; it is not an ordinary composite-video camera. Hardware only: any required mounting, wiring, adapters and camera installation are separate.

  • Vehicle and camera installation requirements *

    Please state the vehicle make, model, year and body style, proposed camera mounting position and any known cable-routing obstacles. Tell us whether you need hardware supply only or a separate camera installation quotation. We must confirm vehicle suitability before fitting.

  • The selected price is camera hardware only. Receiver compatibility is not a guarantee of vehicle fitment. Any camera installation, mounting, wiring or adapters must be checked, quoted and agreed separately before work.

Find the right parts for your vehicle

Can't see your vehicle in the options on this page? Browse the categories below, then ask us to confirm the exact parts for your vehicle's make, model, year, dashboard, original radio and factory equipment. These are catalogue links, not a list of compatible parts. Do not add a component already included in a selected kit or option.

Product total

Options total

Grand total

SKU DMX9724XDS Category Tags , , Brand:

Description

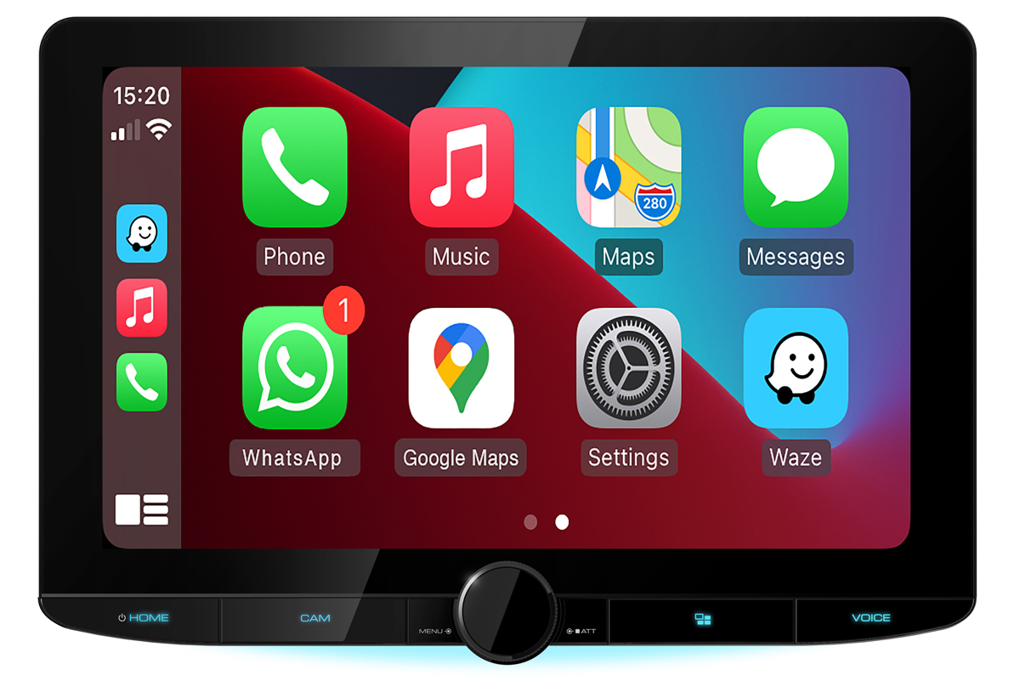

10.1-inch HD floating touchscreen receiver with wireless and wired Apple CarPlay / Android Auto, DAB+ radio, Bluetooth audio and USB-C. Includes DSP, time alignment, 13-band EQ and three 5 V pre-outs. Four-camera support uses the assignable AV input for the fourth view; cameras are optional.

What is supplied

One DMX9724XDS receiver and display assembly. Cameras and optional installation extension cables are not included.

Compatibility and installation

Check the exact vehicle, dashboard aperture, screen clearance, wiring interface, antenna and retained factory features before purchase. Fascia and interfaces may be required separately; this is not a complete vehicle fitting kit. Smartphone features require compatible devices and apps. Navigation apps, mobile data and any subscriptions are separate; no bundled offline navigation or extended installer warranty is promised.

Supply and fitting

The displayed price is for the receiver and display assembly. Vehicle-specific installation is available by quotation. Contact for an installation quote. Required wiring, adapters, mounting work and labour are quoted after assessing your vehicle. We fit equipment supplied by Lehane Autos; customer-supplied parts are not accepted. Physical delivery is calculated at checkout. Collection requires confirmed stock and an appointment.

Compatible Kenwood reversing cameras

Choose one camera for each intended camera input. These are optional alternatives, not a requirement to buy every model. Do not add a separate camera if your chosen package already includes it. Camera mounting, required wiring or adapters and camera installation must be checked for the exact vehicle and receiver. These extras are separate unless expressly included; stereo fitting does not automatically include camera fitting.

Optional Kenwood installation cables

  • KCA-HD200 1.8m HDMI cable for connecting a suitable HDMI source to this receiver’s Type-D micro-HDMI input. Any device-specific AV adapter and USB cable are separate; this cable alone does not provide phone mirroring.
  • KCA-A150EX 1.5m display extension cable set for a separated-screen installation when the original connecting cable does not reach.

Choose only the cables your installation needs. Confirm the source device, adapters and mounting layout before ordering. Do not add a duplicate cable or set if your package already includes it. Cables and any additional installation work are separate unless expressly included.

UK price: £1,217.12 including VAT (£1,014.27 excluding VAT).
