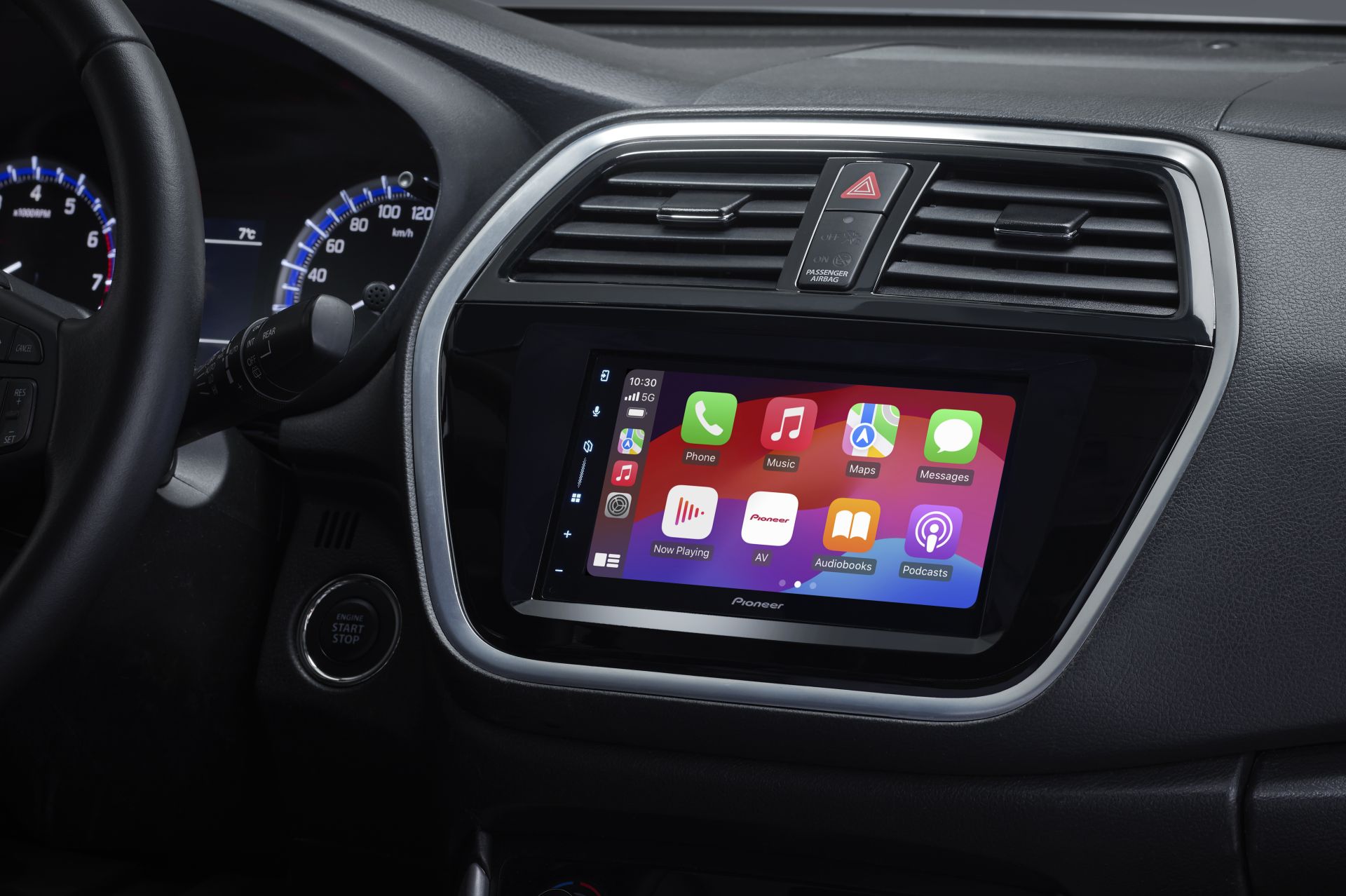

Pioneer SPH-DA77DAB 6.8-inch Wireless CarPlay & Android Auto Stereo

Pioneer SPH-DA77DAB 6.8-inch Wireless CarPlay & Android Auto Stereo

£408.74 inc VAT

Stereo price: £340.62 + VAT (£408.74 including VAT).

Wireless or wired Apple CarPlay and Android Auto.

Choose supply only or add standard Swansea workshop fitting below: £192 including VAT for a 2-hour labour allowance, subject to vehicle compatibility and installation circumstances. Optional DAB aerial fitting adds £48 including VAT (0.5 hour) with stereo fitting. Required additional parts and work beyond the standard allowance are separate and agreed before proceeding.

Optional Ford, Volkswagen, Honda or Vauxhall fitting components: confirm exact application

Optional components for the listed vehicle configurations only, not a complete installation package or final fitment approval. Select no kit for any other vehicle. Confirm the exact dashboard, original radio, connectors, mounting method, trim, rear clearance and factory equipment before ordering. CTKFD88: selected Ford Transit V363 2015–2021. CTKFD92: selected Ford Transit Custom V362 2013–2021. Both require the matching dashboard WITHOUT an original factory display. Suitable working hazard/door-lock controls and the correct airbag-indicator/trim arrangement must remain. Assess safe reuse of compatible original parts; replacements are needed only when necessary. Never remove or replace a required airbag warning lamp with a card holder. CTKFD21: black fascia for the matching square original-radio opening in Ford C-Max 2005–2010, Fiesta 2006–2008, Fusion 2006–2012, Galaxy 2006–2014, Kuga 2008–2012, S-Max 2006–2014 or Transit 2006–2013. Double-DIN installation requires cutting the centre bar of the supplied fascia. This kit requires the matching Quadlock harness WITHOUT a 12V ignition feed and the supported 5000C/6000CD/6006CD original radio. It is not offered for curved original-radio openings. CTKVW05/CTKVW22: selected Volkswagen Passat B6/B7 2005–2015, Eos 2006–2015, Golf Mk5/Mk6 2005–2013, Jetta 2005–2011, Polo 2009–2014, Scirocco 2008–2014 or Touran 2006–2010. Requires a matching RCD200/300/310/500/510 original radio, Quadlock harness and CT24VW09-shaped dashboard. Choose CTKVW05 only for the matching single-Fakra AM/FM connection, or CTKVW22 only for the matching twin-Fakra AM/FM connection. Check actual plugs and fascia, not model year alone. Later MIB/52-way systems and unlisted vehicles are outside this option. CTKHD06: right-hand-drive Honda Civic hatchback 2012–2014 with the matching basic, non-amplified, non-navigation factory system only. Not for Honda Connect, left-hand-drive, sedan or unverified dashboards. Includes CT23HD25 black fascia and side brackets, CTSHO006.2 CAN-bus interface, CT27AA71 powered DIN AM/FM antenna adapter and CTMULTILEAD.2 patch lead. The original Bluetooth module is bypassed. Supported phone buttons can control a compatible replacement receiver, but original voice recognition is not retained. Confirm the original radio, antenna connection, Bluetooth bypass connection, secure bracket fit and receiver clearance before approval. CTKVX37/CTKVX38: right-hand-drive Vauxhall Vivaro B 2014–2018 with the matching non-touchscreen original radio, 20-/32-pin radio connections, Fakra AM/FM connection and three rotary climate controls shown in the fitting guides. Choose CTKVX37 for the matching black CT23VX49 fascia, or CTKVX38 for the matching black/silver CT23VX50 fascia. Each has its own documented side-bracket assembly; check the actual fascia and brackets, not colour alone. Both include the CTSVX007.2 analogue steering-control interface, powered CT27AA14 AM/FM adapter, CTMULTILEAD.2 patch lead and CTVXUSB.2 USB socket adapter. Original USB use depends on compatible receiver connections and testing; phone projection is not promised through the original socket. Original touchscreen/navigation systems, later Vivaro generations and unverified dashboards are outside this option. These options are limited to standard unamplified audio without an original camera or essential functions requiring an unverified retention interface. DAB aerial or factory-DAB retention is separate where the stereo supports DAB. Kit prices cover components only. Existing stereo installation options remain separate and subject to their stated scope; additional parts, fascia work, coding and other labour are assessed and agreed separately.

  • Optional fitting kit for the listed vehicle configuration *

    Every listed kit includes its specified fitting components, vehicle wiring/interface, AM/FM adapter and CTMULTILEAD.2 patch lead. Do not add another patch lead automatically. Configure the included CTMULTILEAD.2 for the exact receiver brand, model and supplied physical patch lead BEFORE powering the interface. Match the physical lead to its own supplied instructions and the exact receiver manual before selecting jumper settings or output wiring. Connect only to the receiver’s dedicated wired-remote/SWC input, not microphone, AUX, amplifier/antenna power or unverified learning wires. Do not assume that settings from another lead or brand apply. The original CTKFD88/92 interface is analogue; do not assume CAN-derived reverse, speed or parking signals. CTKFD21 and the Volkswagen interfaces have their own specified signal outputs and must be wired and tested to their manuals. No universal factory camera, amplifier, parking audio, SYNC, microphone, USB/AUX or vehicle-menu retention is included. Mounting remains model-specific: check bracket engagement, correct permitted screws, trim flushness and rear cable/ventilation clearance against the exact receiver manual. SPH-DA77DAB uses a reduced rear chassis; FH-S720BT/FH-S820DAB bracket screws are not supplied with the receiver and must be confirmed. For Kenwood DMX5023DABS/DMX6523DABS and JVC KW-M593BT/KW-M595DBT/KW-M695DBW, the bracket route uses the reduced rear chassis after removal of the specified rear and side brackets; M5 screws with 8 mm maximum length are separately required. JVC KW-M795DBW/KW-M875DBW use their documented side brackets and supplied M5 x 8 mm screws. Confirm actual kit bracket alignment, secure support, trim, permitted mounting angle and ventilation. Fascia compatibility alone is not proof of an exact mounting-hole match. AVH-Z9200DAB: confirm the motorized LCD panel can fully open and move without contacting the fascia, trim or gear lever, or obstructing vehicle controls, hazard controls, required warning lamps or airbags. Do not approve fitment until this clearance is verified. Honda CTKHD06 uses its documented side-bracket assembly, not a sleeve-only assumption. Follow the exact receiver mounting procedure and permitted fasteners above. Connect the CTSHO006.2 ISO power/speaker output to the correct receiver loom and configure the included patch lead before interface power. Connect and test the powered CT27AA71 AM/FM antenna adapter according to the equipment instructions. The original Bluetooth module must be bypassed as instructed; this does not retain original voice recognition. No separate paid patch lead is required. For CTKVX37/38, follow the exact CT23VX49 or CT23VX50 side-bracket guide and the receiver mounting limits above. The black and black/silver fascia assemblies have different bracket arrangements; do not substitute one procedure for the other. Verify secure receiver mounting, correct fascia engagement and all specified fixings using that fascia’s own guide. Connect and test the CTSVX007.2 ISO loom, supplied patch lead and powered AM/FM adapter to their instructions. This analogue interface does not provide reverse, parking-brake or speed-pulse outputs; any required receiver signals need separate correct connections. Do not rely on this kit to retain clock/date controls or unverified factory features. No extra paid patch lead, aerial adapter or USB adapter is required for components already supplied in the kit.

  • Vehicle and original audio details for compatibility confirmation *

    Enter make/model, production month/year, exact original radio/display, radio opening shape where relevant, factory equipment and connector details. For CTKFD21, confirm the installer has checked the absence of a 12V ignition feed in the Quadlock harness. For Volkswagen, confirm original RCD model and single or twin Fakra antenna plug. For CTKFD88/92, describe the existing hazard/door-lock and passenger-airbag-indicator arrangement. Dashboard and connector photos may be required. Selection alone does not confirm compatibility. For Honda CTKHD06, confirm right-hand-drive Civic hatchback 2012–2014, the exact original radio, no factory amplifier/navigation/Honda Connect, matching radio and antenna connectors, the Bluetooth bypass connection and the proposed secure side-bracket mounting arrangement. For CTKVX37/38, confirm right-hand-drive Vivaro B 2014–2018, exact original non-touchscreen radio, three rotary climate controls, 20-/32-pin radio connectors, Fakra AM/FM connection, fascia finish and the correct side-bracket assembly. State any original USB, display, navigation, camera, amplification or other factory functions that need retention.

  • I understand that this is a conditional component option requiring exact vehicle and mounting confirmation. Any fascia cutting, extra parts, coding or labour must be agreed before work. Original safety controls and required warning lamps must remain functional; compatible originals may be reused only where safe. The patch lead is already included and must be configured before interface power. DAB provision and factory-function retention are not automatically included. Existing stereo labour is charged only once where selected; these components do not extend its scope. For Honda CTKHD06, I understand the original Bluetooth module is bypassed and original voice recognition is not retained; the exact original system, connectors and secure side-bracket fit must be checked before approval. For CTKVX37/38, I understand that the exact dashboard, connectors and bracket arrangement must be checked, receiver-required signals need separate correct wiring, and original USB/clock/date or other factory features are not automatically retained.

Installation options

Optional Swansea workshop installation for a stereo supplied by Lehane: standard 2-hour labour allowance £160 + VAT (£192 including VAT). Subject to vehicle compatibility, existing faults, access and installation circumstances. Fitting kits, interfaces, any aerial hardware not expressly included, camera installation and any additional work are separate and must be agreed before proceeding. DAB aerial fitting, when selected with stereo installation, adds 0.5 hour labour at £40 + VAT (£48 including VAT). No customer-supplied parts. Contact us before ordering to confirm the vehicle, required parts and workshop appointment. For fitted orders, select Workshop collection / fitting appointment (free) in the basket or checkout. Buying installation does not reserve an appointment.

  • Installation option *

  • Available only with selected stereo installation for Lehane-supplied equipment. Labour only: £40 + VAT (£48 including VAT). Any required DAB aerial or adapters not expressly included with the stereo are priced separately and must be confirmed before ordering.

Add a reversing camera?

Optional Pioneer ND-BC9 camera hardware for this stereo. Camera fitting is separate from stereo installation and is not included; camera installation starts from £192 including VAT, subject to vehicle, mounting, cable routing and reverse-signal assessment. Receiver compatibility does not confirm vehicle fitment or retain an original factory camera. Extra work is quoted and agreed before fitting.

  • Optional reversing camera *

    ND-BC9 hardware only: NTSC RCA, suitable 12V power and supplied 10m cable. Vehicle routing, mounting and reverse trigger must be checked. No camera-fitting labour is included. Enable the rear-camera input and choose NTSC where selectable (not HD-TVI or AHD). Confirm the exact receiver connection loom/lead and reverse-signal polarity before installation.

  • Vehicle and camera installation requirements *

    Make, model, year and body type; proposed camera position and routing obstacles. State supply only or request a separate fitting quote.

Find the right parts for your vehicle

Can't see your vehicle in the options on this page? Browse the categories below, then ask us to confirm the exact parts for your vehicle's make, model, year, dashboard, original radio and factory equipment. These are catalogue links, not a list of compatible parts. Do not add a component already included in a selected kit or option.

Product total

Options total

Grand total

SKU SPH-DA77DAB Category Brand:

Description

Pioneer SPH-DA77DAB 6.8-inch Wireless CarPlay & Android Auto Stereo

  • 6.8-inch capacitive touchscreen with a short chassis for double-DIN installations
  • Wireless and wired Apple CarPlay and Android Auto
  • DAB+ radio, Bluetooth and compatible WebLink smartphone mirroring
  • 13-band equaliser and three 4V RCA pre-outs
  • Optional vehicle-bus adapter may retain supported factory functions. Vehicle-specific adapters and reversing camera are separate

Check your vehicle before ordering

This is an aftermarket head unit, not a vehicle-specific plug-and-play kit. Your vehicle may require a fascia, wiring harness, aerial adapter, DAB antenna, steering-wheel-control interface, amplifier interface or camera-retention adapter. These are not included unless explicitly stated. Original factory functions are retained only where supported by the correct interface.

Compatible optional reversing camera

Pioneer lists the ND-BC9 reversing camera as an optional accessory for this receiver. It provides a new rear-camera installation and does not retain an original factory camera.

Use the camera link to view its specifications. If you add it using the camera selector above, do not order another one separately. Confirm the mounting position, cable route, power and reverse-trigger wiring, and receiver setup. Camera installation and any extra parts are quoted separately from standard stereo fitting.

Professional installation

Choose supply only or optional standard workshop installation using the selector above. Standard stereo fitting at Lehane Autos, Swansea adds £160 + VAT (£192 including VAT) for a 2-hour labour allowance, subject to vehicle compatibility, existing faults, access and installation circumstances. Optional DAB aerial fitting with selected stereo installation adds £40 + VAT (£48 including VAT) for 0.5 hour of labour. Fitting kits, interfaces, any aerial hardware not expressly included, camera installation and work beyond the standard allowance are separate and must be agreed before proceeding. Contact us before ordering with the vehicle make, model, year and original stereo details to confirm the required parts, scope and workshop appointment. We fit equipment supplied by Lehane Autos; customer-supplied parts are not accepted. For fitted orders, select Workshop collection / fitting appointment (free) in the basket or checkout. Buying installation does not reserve an appointment. Supply-only delivery is calculated at checkout; collection requires confirmed stock and an appointment.

Workshop collection or UK delivery is available at checkout. Smartphone functions depend on a compatible phone, current software and the required connection.

UK price: £408.74 including VAT (£340.62 excluding VAT).

Additional information

Phone connection

Wireless or wired
