Description

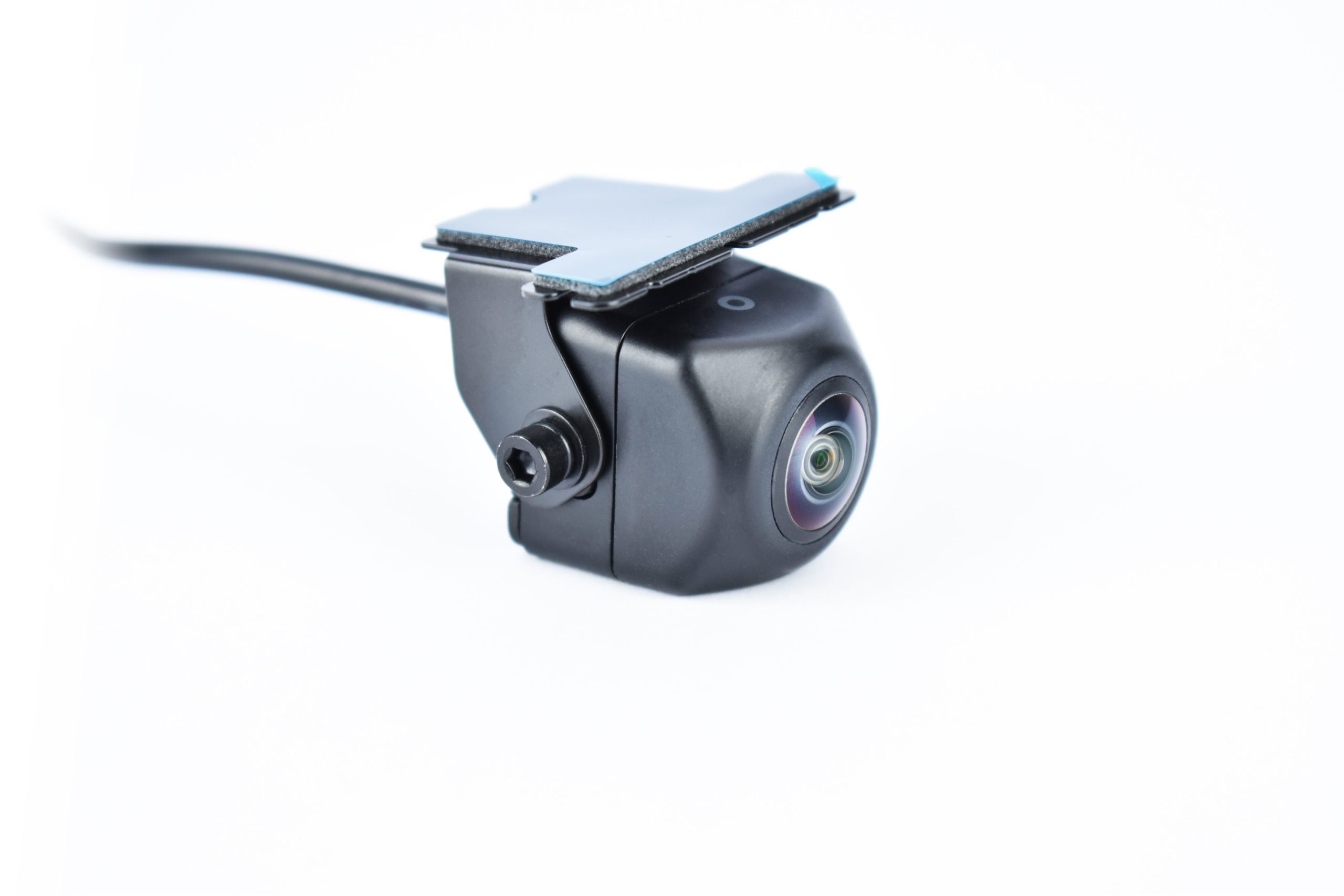

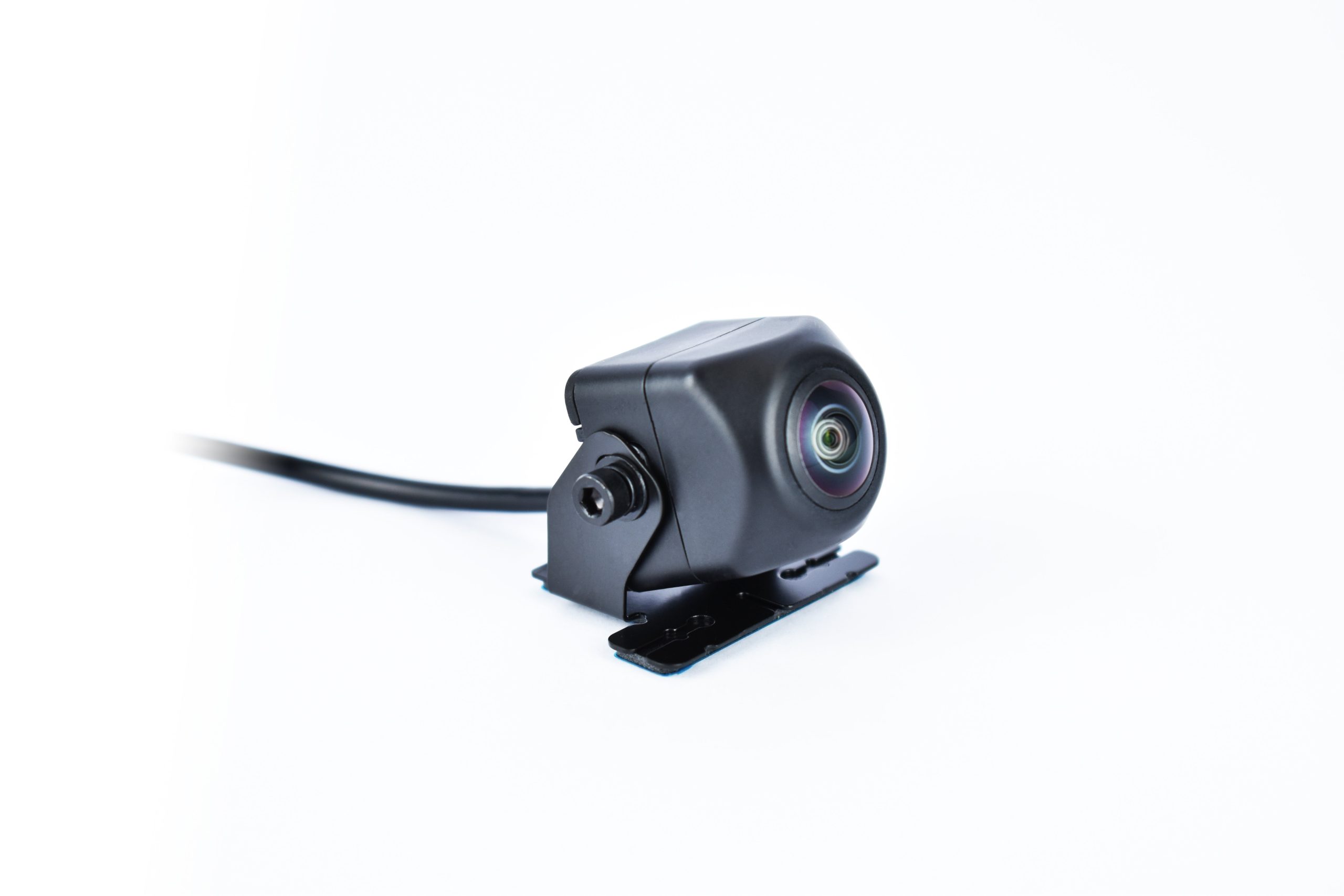

The Pioneer ND-BC9 is a universal rear-view camera for a display with a compatible NTSC CVBS rear-camera input. It uses an RCA video connection, so it can be used with a compatible Pioneer head unit or another compatible screen or monitor. Check the display’s supported video input before purchase; a screen that can show images is not necessarily compatible if it does not accept CVBS/NTSC.
Camera features
- 1/4-inch CMOS sensor with 0.3 megapixel output and 350 TV lines
- 159° horizontal and 117° vertical viewing angle
- NTSC video, mirrored image and RCA connection
- Automatic brightness adjustment for changing light conditions
- IP67 rated and E-Mark certified
- 10 m cable included (3 m + 7 m)
- Power: 14.4 V DC nominal (10.8–15.1 V); current draw under 100 mA at 14.4 V
- Operating temperature: -30°C to +70°C
- Camera dimensions: 23.8 × 23.8 × 25.5 mm; weight: 188 g
Compatible EVO receiver packages
Pioneer lists ND-BC9 as an optional new reversing camera for these receiver packages:
Each package has its own restricted vehicle fitment. Confirm the actual dashboard and original equipment before choosing one. Installing this new camera requires suitable mounting, cable routing, power and reverse-trigger wiring, and receiver setup. It does not retain an original factory camera or remove the package exclusions. Receivers, fitting and any extra parts are separate.
Compatible AVH receivers
Pioneer lists ND-BC9 as an optional new reversing camera for each of these receivers:
Receivers are sold separately. Choose the correct dashboard format and confirm vehicle fitment. Camera mounting, power, cable routing, reverse-trigger wiring and receiver setup must be assessed. This is a new-camera option, not an original-camera retention interface; fitting and extra parts are quoted separately.
Compatible SPH-DA receivers
Pioneer lists ND-BC9 as an optional reversing camera for these receivers:
- Pioneer SPH-DA150BT
- Pioneer SPH-DA250DAB
- Pioneer SPH-DA360DAB
- Pioneer SPH-DA77DAB
- Pioneer SPH-DA160DAB
- Pioneer SPH-DA97DAB-1D
Receivers are sold separately and differ in features. Check the exact vehicle, dashboard, wiring and required interfaces before choosing one. This is a new rear-camera option, not factory-camera retention. Camera mounting, power, reverse-trigger wiring, cable routing and receiver setup must be assessed; fitting and extra parts are separate.
Compatible AVH-A and DMH-A receivers
Pioneer lists ND-BC9 as an optional rear-view camera for these receivers:
- Pioneer AVH-A240DAB
- Pioneer DMH-A240BT
- Pioneer AVH-A240BT
- Pioneer DMH-A240DAB
- Pioneer DMH-A340DAB
- Pioneer DMH-A270DAB
- Pioneer DMH-A270BT
These receivers differ in screen size, disc playback and radio features, so choose the model suited to the vehicle and requirements. Receivers, installation and additional fitting parts are separate. This is a new rear-camera installation, not factory-camera retention; confirm mounting, wiring and receiver setup before fitting.
Compatible modular receivers and on-dash display
Pioneer lists ND-BC9 as an optional rear-view camera for these exact models:
- Pioneer SPH-EVO107DAB-1D
- Pioneer SPH-EVO98DAB-1D
- Pioneer SPH-EVO109DAB-UNI
- Pioneer SPH-PF97BT
- Pioneer SPH-OD880
The EVO models are 1-DIN floating receiver packages; SPH-PF97BT needs a compatible bespoke vehicle installation kit. SPH-OD880 is an add-on on-dash display, not a replacement DIN stereo. Check each listing and the actual vehicle before choosing. The camera requires suitable mounting, cable routing, power, reverse-trigger wiring and display setup. This does not retain a factory camera. Receivers or display, fitting and extra parts are separate.
Supply and fitting
This listing is supply only. Professional Swansea workshop installation is available by quotation. Confirm your vehicle, model year and installed screen before booking; additional adapters, wiring, mounting work and labour are priced separately. No display is included.
A reversing camera is a driver aid. Always check the surroundings directly; coverage and image quality depend on mounting position, lighting and conditions.
UK base price: £131.94 including VAT (£109.95 excluding VAT). Selected options or extras may change the total.
