Description

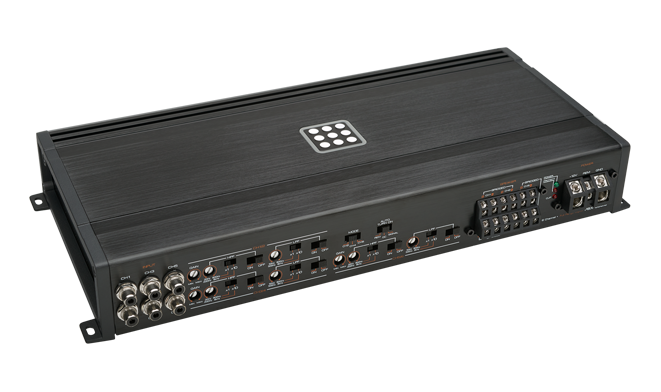

- Six-channel Class D car amplifier
- 6 x 100 W RMS at 4 ohms; 6 x 150 W RMS at 2 ohms
- 3 x 300 W RMS bridged at 4 ohms
- Minimum load: 2 ohms per channel or 4 ohms bridged
- Three stereo RCA input pairs with suitable speaker-level input compatibility
- Selectable high-pass, low-pass and band-pass crossover functions
- Clipping indication, selectable automatic turn-on and cooling/protection circuitry
System planning
This is an analogue amplifier, not a DSP processor. A wired bass remote and subsonic filter are not supplied features of this six-channel model. Power/ground wiring, suitable circuit protection, source unit and speakers are separate. Professional system design is required to match speaker loads, gain, crossover settings and electrical capacity.
Supply and fitting
Contact for install price. Prices include VAT. Shipped physical goods incur delivery charges at checkout. Collection requires confirmed stock and an appointment. Confirm supplier availability before ordering.
Optional speaker-level input harness
For a compatible radio speaker-level signal, use the separately sold HL-AD2 two-channel input harness. Use one, two or three harnesses for two, four or six speaker-level inputs respectively. Confirm source voltage, input routing and turn-on settings against this amplifier’s manual. No harness is needed for a conventional RCA line-level connection.
UK base price: £550.00 including VAT (£458.33 excluding VAT). Selected options or extras may change the total.
