Description
Four full-range channels plus a dedicated subwoofer channel support a complete speaker-and-bass system from one chassis. Rated 100 W x 4 plus 500 W x 1 into 4 ohms at 14.4 V; channel loads and configuration affect output.
What is supplied

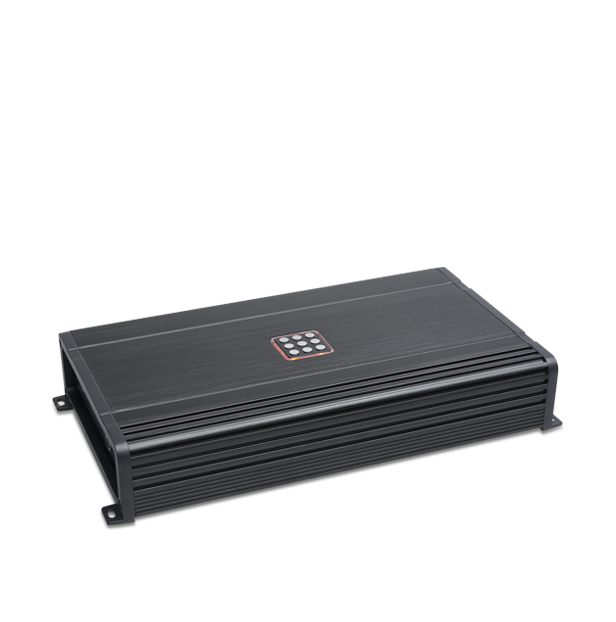

One PBX-1200.5 amplifier with wired remote level controller.
Compatibility and installation
Minimum load is 2 ohms per normal channel; bridged full-range channel pairs require at least 4 ohms. Dedicated subwoofer channel, where fitted, remains at least 2 ohms. Professional installation recommended. Confirm speaker power handling, total wired impedance, gain, crossover settings, ventilation and vehicle charging-system capacity. Requires correctly rated power/earth cabling, fusing and compatible audio inputs; vehicle wiring kits, speakers and subwoofers are not included. Any multi-amplifier linking must follow the exact manufacturer manual and is not a lower-load permission.
Supply and fitting
Supply only. Contact for install price. Required wiring, adapters, mounting work and labour are quoted after assessing your vehicle. We fit equipment supplied by Lehane Autos; customer-supplied parts are not accepted. Physical delivery is calculated at checkout. Collection requires confirmed stock and an appointment.
Optional speaker-level input harness
For a compatible radio speaker-level signal, use the separately sold HL-AD2 two-channel input harness. Use two harnesses for four speaker-level inputs, or three for six. Confirm source voltage, input routing and turn-on settings against this amplifier’s manual. No harness is needed for a conventional RCA line-level connection.
UK price: £531.76 including VAT (£443.13 excluding VAT).
