Description

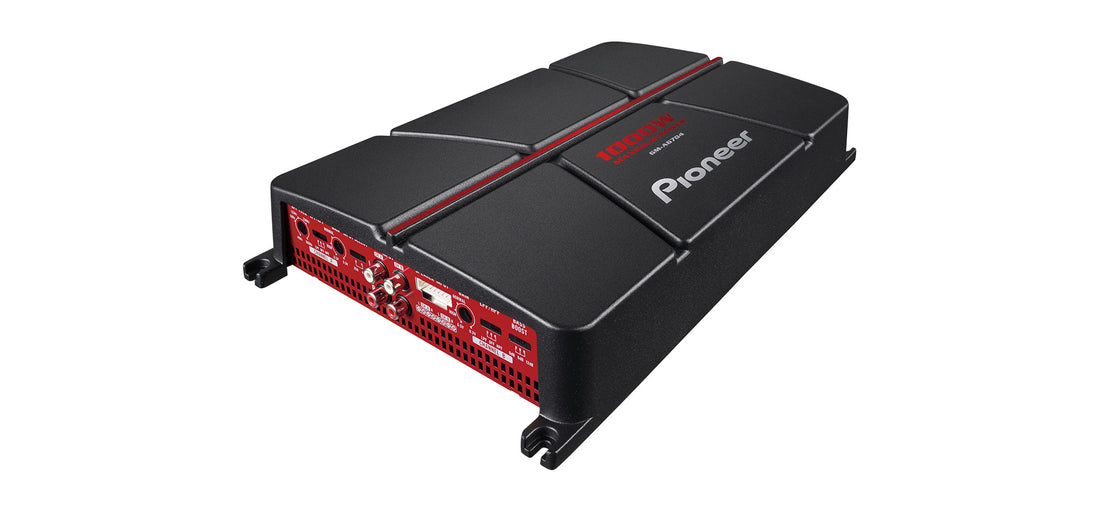

The Pioneer GM-A6704 is a four-channel bridgeable amplifier for powering speakers or a subwoofer in a car audio system. It provides selectable high-pass, low-pass or full-range operation, with adjustable high-pass frequency on channel group A and selectable bass boost on channel group B.
Key specifications
- Continuous output: 4 × 60 W RMS at 4 Ω; 4 × 95 W at 2 Ω; or 2 × 190 W bridged at 4 Ω
- Maximum output: 4 × 170 W at 4 Ω, 4 × 250 W at 2 Ω, or 500 W × 2 bridged
- Channel A HPF: adjustable 40–500 Hz. Channel B HPF and both channel groups’ LPF: fixed 80 Hz. Filter slopes: −12 dB/octave
- Channel B bass boost: selectable 0 / 6 / 12 dB at 50 Hz
- Frequency response: 10 Hz–70 kHz
- Dimensions: 356 × 60 × 215 mm
Installation wiring and professional fitting are not included unless selected separately. Confirm suitable wiring, speaker impedance and vehicle installation requirements before purchase.
Installation and compatible accessories
Contact for install price. Labour varies with your vehicle, access and system design. Installation is subject to compatibility and installation circumstances. Any required adapters, mounting work, wiring or additional labour will be quoted and agreed before proceeding.
Often bought together
For suitable amplified systems, consider the Stinger Select SSK8 8-gauge amplifier wiring kit. Confirm current draw, fuse rating, cable size and length before ordering; this kit is not suitable for every installation. Vehicle-specific speaker adapters, harnesses and signal interfaces may also be required. Wiring and fitting are separate unless expressly included.
UK base price: £173.88 including VAT (£144.90 excluding VAT). Selected options or extras may change the total.
