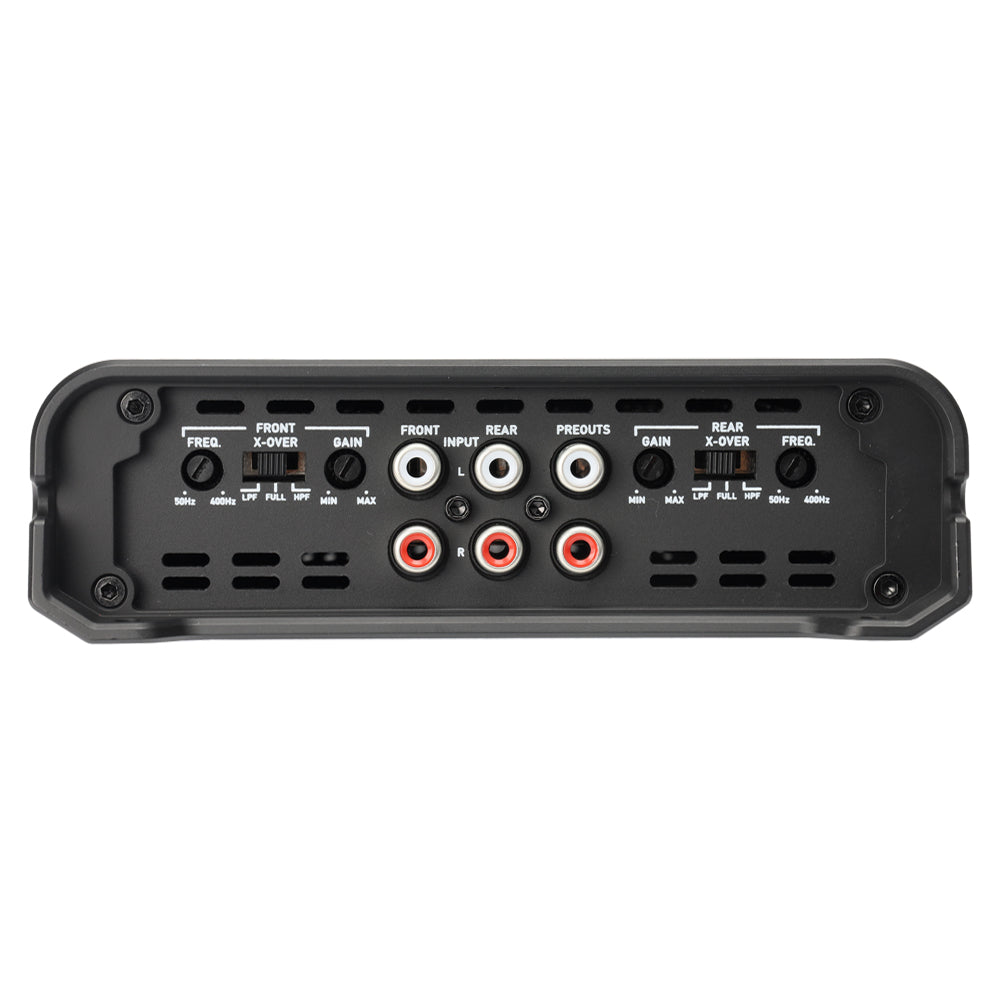

Phoenix Gold Z3004i 4-Channel Amplifier

Phoenix Gold Z3004i 4-channel amplifier

Phoenix Gold Z3004i 4-Channel Amplifier

£175.00 inc VAT

Phoenix Gold 4-channel bridgeable amplifier rated at 65 W RMS × 4 at 4 Ω, with high- and low-pass crossovers and low/high-level inputs.

Supply only. Contact for install price. Subject to vehicle and system compatibility; wiring and fitting are separate.

Contact for install price

Installation cost varies with the vehicle, access, system design and required wiring. The product price is supply only unless this listing expressly includes installation. Contact us for a vehicle-specific installation price before ordering fitting. Installation is subject to compatibility and installation circumstances; additional parts or labour will be agreed before proceeding.

  • Installation quote and wiring *

    Installation Contact for install price — send your vehicle make, model, year and system details.
    Wiring for amplified systems Stinger Select SSK8 amplifier wiring kit — an option for suitable amplified systems. Confirm cable gauge, current draw, fuse rating, cable length and kit contents before ordering. Some active subs include wiring; ordinary speaker replacement may instead require vehicle-specific speaker adapters or harnesses. Contact us to select the correct kit.

Product total

Options total

Grand total

SKU Z3004i Categories , Brand:

Description

The Phoenix Gold Z3004i is a bridgeable four-channel amplifier for a car audio speaker system or a speaker and subwoofer setup. High- and low-pass crossovers help tailor the output to the connected speakers.

Key specifications

  • RMS output: 65 W × 4 at 4 Ω; 90 W × 4 at 2 Ω; 180 W × 2 bridged at 4 Ω
  • Maximum output: 600 W
  • High- and low-pass crossovers: 50–400 Hz, 6 dB/octave
  • Low/high-level input range: 0.2–10 V
  • Frequency response: 20 Hz–20 kHz
  • Minimum load: 2 Ω stereo or 4 Ω bridged
  • Dimensions: 254 × 160 × 48 mm

Choose compatible speaker impedance and correctly fused wiring for installation. Wiring and vehicle fitting are not included unless selected separately.

Installation and compatible accessories

Contact for install price. Labour varies with your vehicle, access and system design. Installation is subject to compatibility and installation circumstances. Any required adapters, mounting work, wiring or additional labour will be quoted and agreed before proceeding.

Often bought together

For suitable amplified systems, consider the Stinger Select SSK8 8-gauge amplifier wiring kit. Confirm current draw, fuse rating, cable size and length before ordering; this kit is not suitable for every installation. Vehicle-specific speaker adapters, harnesses and signal interfaces may also be required. Wiring and fitting are separate unless expressly included.

UK base price: £175.00 including VAT (£145.83 excluding VAT). Selected options or extras may change the total.
