Description
Special order only. Please contact us to confirm supplier availability and the expected lead time before ordering. This is not a promise of stock held on site.
Matched passive tweeter filtering

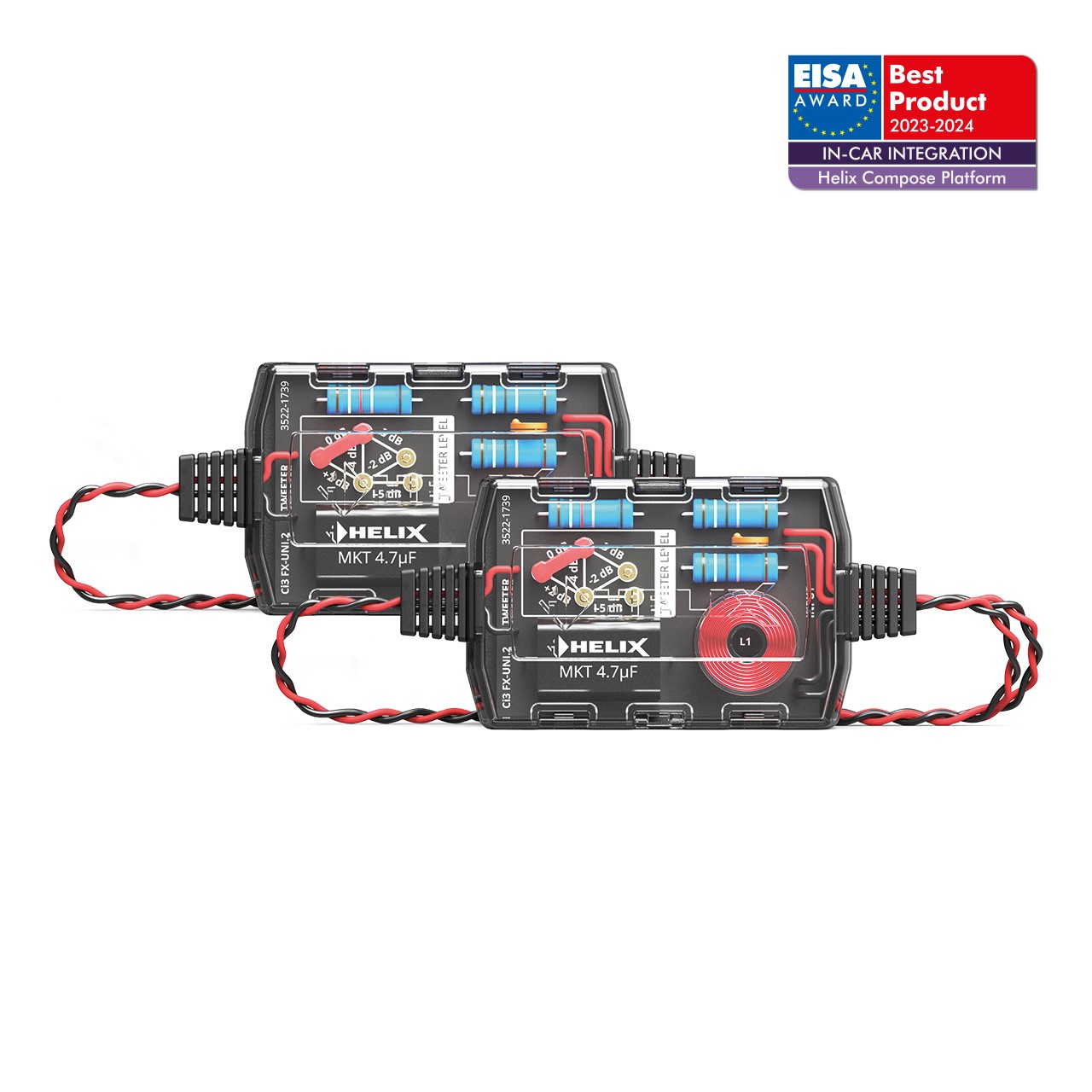

- Two Ci3 FX-UNI.2 crossover networks and two COMPOSE Connect kits
- 12 dB/octave tweeter high-pass filtering
- Six-stage tweeter level adjustment from -5 dB to +2 dB
- Integrated tweeter protection
Designed for compatible HELIX COMPOSE i3 components, including the matched Ci3 T20FM-AL MK2 application. Confirm the complete woofer/tweeter configuration before ordering; these are not universal crossover networks for arbitrary speakers.
Separate Ci3 FX-WLP.2 woofer low-pass cable crossovers are not included. Add them where required by the selected woofer/system design. Vehicle-specific WireKits, speakers and amplification are separate.
Supply and fitting
Contact for install price. Installation is not included. Prices include VAT. Delivery charges are shown at checkout. Collection requires confirmed stock and an appointment. Confirm supplier availability before ordering.
Matched midbass and cable options
Choose the midbass pair for your specified installation: Ci3 W130-S3, Ci3 W165FM-S3 or Ci3 W165FM-S2. These are alternative sizes and impedances, not a requirement to buy all three.
For these passive combinations, the separate Ci3 FX-WLP.2 low-pass cable pair connects the midbass drivers to this crossover. Confirm the matched tweeter, filtering and amplifier load, and check existing kit contents before ordering additional parts.
8-inch woofer options
Ci3 W200FM-S2 or Ci3 W200FM-S3 can connect to this crossover using separate CWK FX.W-550CC cables (CI44003). These use a different cable from the W130/W165 combinations above. Confirm cable availability, matched tweeter and amplifier load before ordering. Speakers and cables are not included.
100 mm midrange option
The Ci3 M100FM-S3 midrange pair can connect to this crossover using the cables included with those drivers. The midrange pair is sold separately. Confirm the matched tweeter and complete system filtering, including protection against low frequencies; this pairing alone does not make a complete vehicle audio system.
UK price: £75.67 including VAT (£63.06 excluding VAT).
