Description

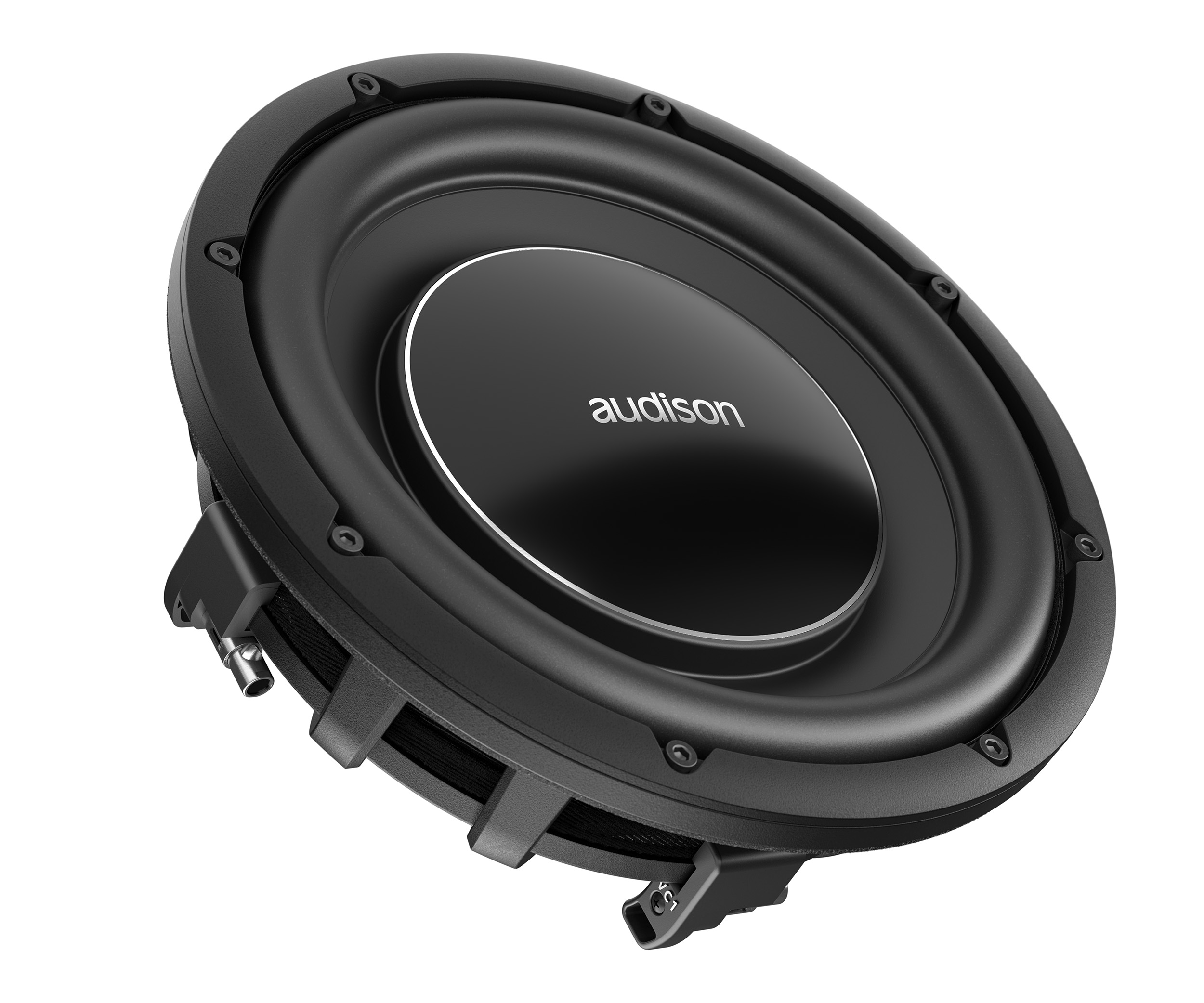

The Audison AV 10 D4 II is a current-generation Voce II passive subwoofer driver.
- One 10-inch subwoofer driver supplied
- Dual 4+4-ohm voice coils
- 550 W continuous / 1,100 W peak power handling
- 25–400 Hz frequency response
- 38.6 mm CCAW voice coil, polypropylene cone and cast-aluminium basket
- Protective grille included
A suitable external amplifier and correctly designed enclosure are required. Series/parallel coil wiring can produce 2 or 8 ohms; match the amplifier to the chosen load. Follow current manufacturer enclosure and mounting specifications rather than assuming a universal box size or under-seat fit.
Complete enclosure alternative
The Audison AVBX 10 D4 II loaded sealed enclosure combines this driver with its matching enclosure. Choose it instead of this separate driver if you want the complete boxed option; do not buy both for a single-subwoofer installation. Neither option includes an amplifier. Check installation space and the final voice-coil wiring load before ordering.
Choose the correct impedance version: the Audison AV 10 D2 II is the alternative dual 2+2-ohm model. These are alternatives, not a pair to buy together. Changing versions changes the amplifier load, so confirm the wiring plan and amplifier minimum impedance before substituting.
Compatibility, installation and delivery
Contact for install price. Supply only. Confirm mounting space, driver impedance, amplifier and crossover/DSP requirements before ordering. Wiring, adapters, fabrication, tuning and installation labour are quoted separately and agreed before work starts. No universal direct-fit vehicle compatibility is promised.
Prices include VAT. Delivery charges apply to shipped physical products at checkout. Workshop collection requires confirmed stock and an appointment.
UK price: £420.00 including VAT (£350.00 excluding VAT).
