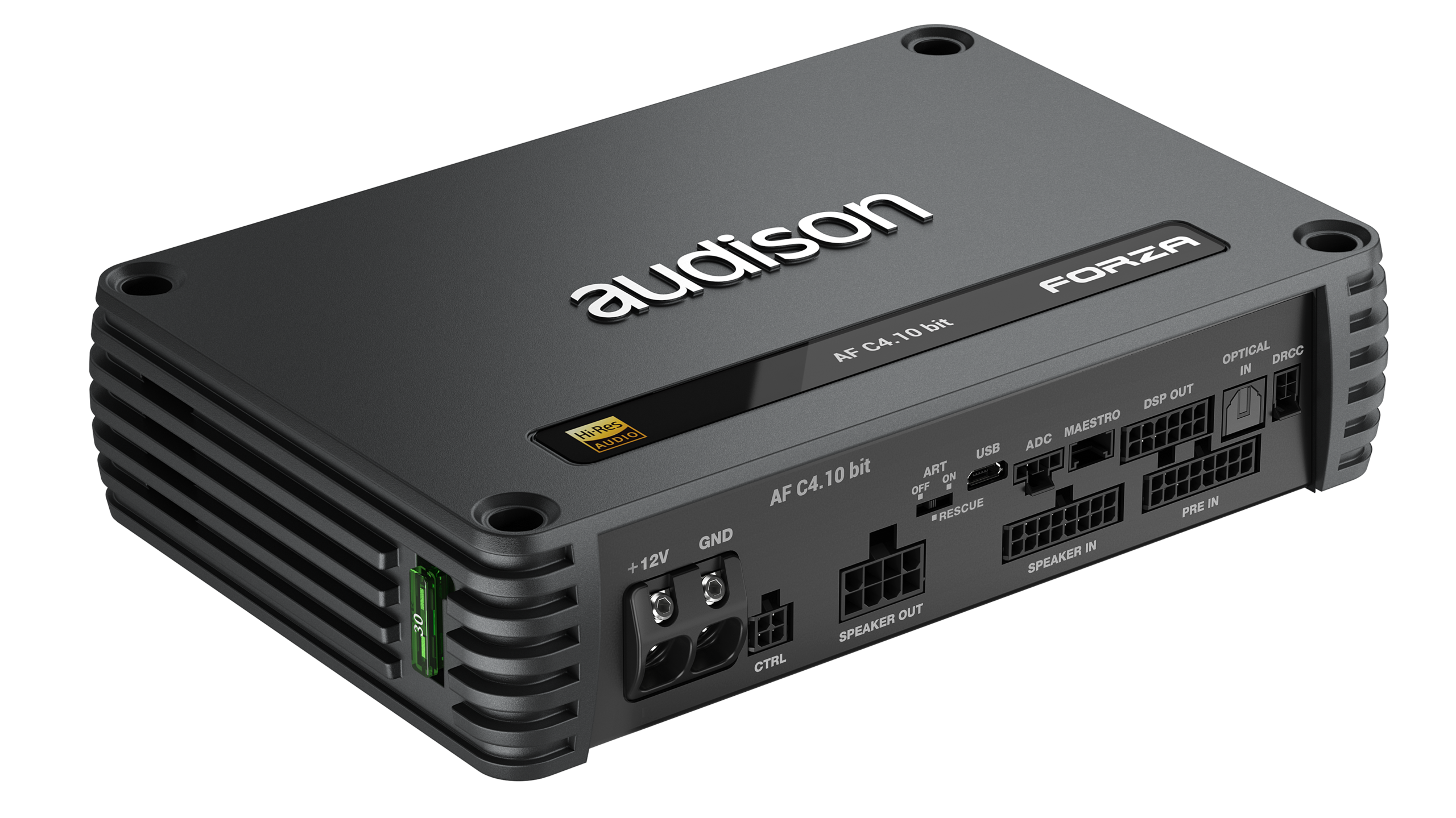

Description
- One Class D amplifier with 4 powered channels
- 10 DSP-controlled output channels in total: 4 amplified plus 6 pre-amplifier outputs
- Continuous RMS output at 14.4 V, 1% THD: 4 × 90 W at 4 ohms; 4 × 150 W at 2 ohms; 2 × 300 W bridged at 4 ohms
- Eight analogue high/low-level input channels plus optical digital input
- 96 kHz DSP processing and Audison bit Drive computer configuration
- Configurable crossovers, equalisation and time alignment
- Supplied input/output and control harnesses and USB connection cable
- Optional DRC controller, B-CON Bluetooth receiver and expansion cards are not included
Optional Bluetooth music receiver
The Audison B-CON II receiver adds Bluetooth music streaming and is sold separately. For Absolute Volume control, use the amplifier’s main optical input and ADC connection, with suitable cabling and bit Drive setup. Check firmware, phone compatibility and package contents before ordering. Installation and configuration are quoted separately.
Optional DRC AC controller
The Audison DRC AC controller can be added using the optional controller selector above. It connects to the DRCC port for functions configured in bit Drive. Check the amplifier and controller firmware before installation. If selected above, do not also buy it separately. Installation and configuration are quoted separately.
System design and installation
Contact for install price. Supply only. Professional system design, protected power wiring, speaker-load matching and DSP configuration are required. Vehicle-specific integration harnesses, additional power wiring, adapters, fabrication, installation and tuning are quoted separately. No universal plug-and-play vehicle fit is promised.
Additional pre-amplifier outputs need separate amplifiers to power speakers. Optional controllers, Bluetooth accessories and expansion cards are sold separately.
Prices include VAT. Delivery charges apply to shipped physical products at checkout. Workshop collection requires confirmed stock and an appointment. Confirm supplier availability before ordering.
UK price: £834.14 including VAT (£695.12 excluding VAT).
