Description

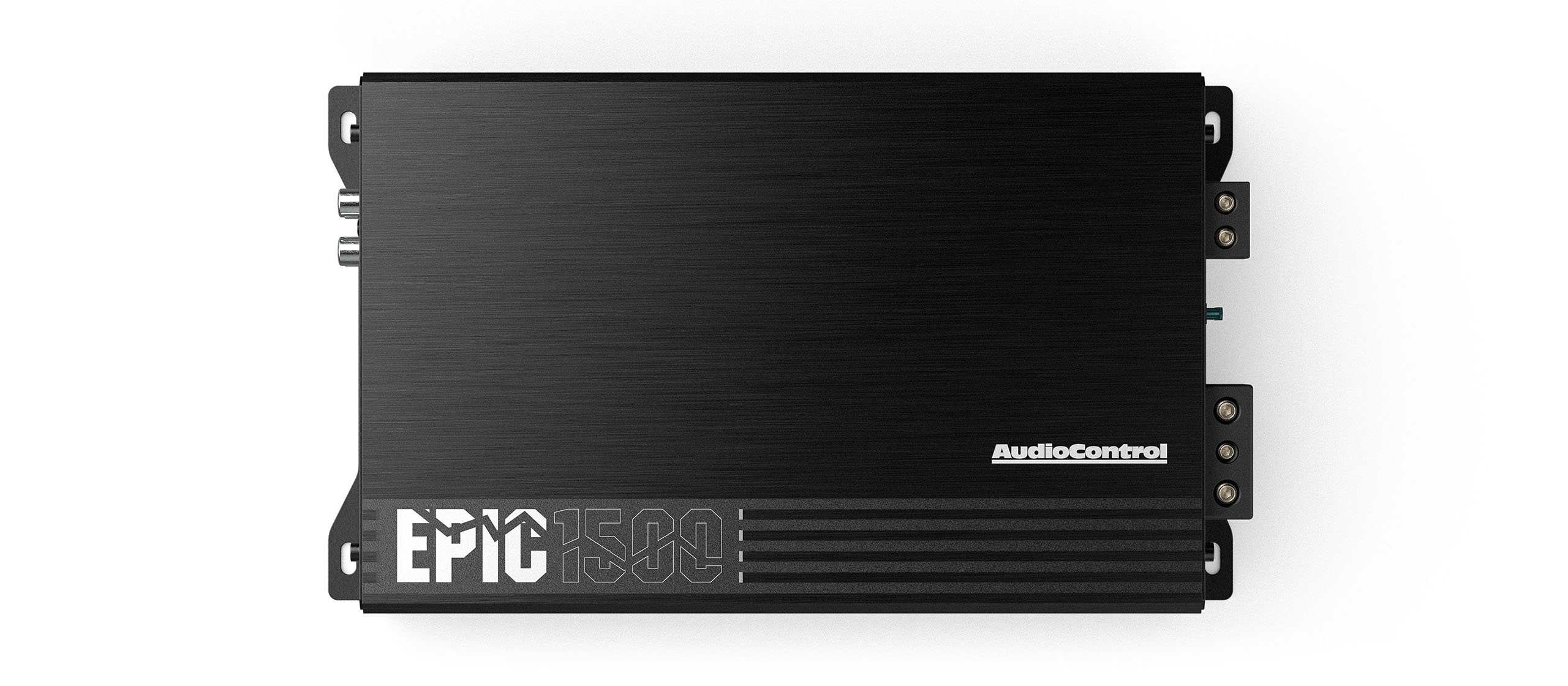

The AudioControl EPIC1500 is a Class-D monoblock amplifier for a suitably matched passive subwoofer system. Its included ACR-E remote provides convenient level control.
- 600 W RMS at 4 ohms
- 1000 W RMS at 2 ohms
- 1500 W RMS at 1 ohm
- Continuous power ratings at 14.4 V
- Line-level RCA inputs, 0.5–6 V
- 40–180 Hz variable low-pass filter and Off–50 Hz subsonic filter
- EPICBoost adjustable 0–12 dB with 30–80 Hz centre frequency
- ACR-E remote control, cable and 1 m Epicenter Link harness included
- Approximate chassis dimensions: 269 × 155 × 51 mm, excluding connectors
Optional bass-restoration processor
The separately sold AudioControl The Epicenter bass-restoration processor is a manufacturer-documented option for this amplifier. It is not built into the amplifier and is not required for basic amplifier operation. The included Epicenter Link harness supplies power, ground and remote turn-on to the processor; it does not carry audio. Suitable RCA connections and a full-range line-level source for the processor are still required.
The amplifier already includes its ACR-E remote. The Epicenter package includes a different ACR-1 controller for the processor; ACR-1 is not compatible with this amplifier’s remote socket. Do not buy another controller for a new complete package. Source integration, subwoofer matching, gain setting and filtering must be checked for the installation; fitting and tuning remain separately quoted.
Compatibility and installation
The Epicenter bass-restoration processor is sold separately and is not built into this amplifier. This amplifier accepts line-level RCA signals, not direct speaker-level inputs. A compatible line-output converter or other interface may be needed with a factory stereo.
Confirm subwoofer impedance and power handling, enclosure suitability, vehicle electrical capacity, cable sizing and fuse protection. A subwoofer, power wiring and vehicle-specific interfaces are not included.
Contact for install price. Supply only. Installation and tuning depend on the vehicle, existing equipment, access and installation circumstances. Additional parts and labour will be quoted and agreed before work starts.
Delivery and collection
Delivery charges apply to shipped physical products and are shown at checkout. Workshop collection is available only after stock and an appointment are confirmed.
UK price: £329.99 including VAT (£274.99 excluding VAT).
