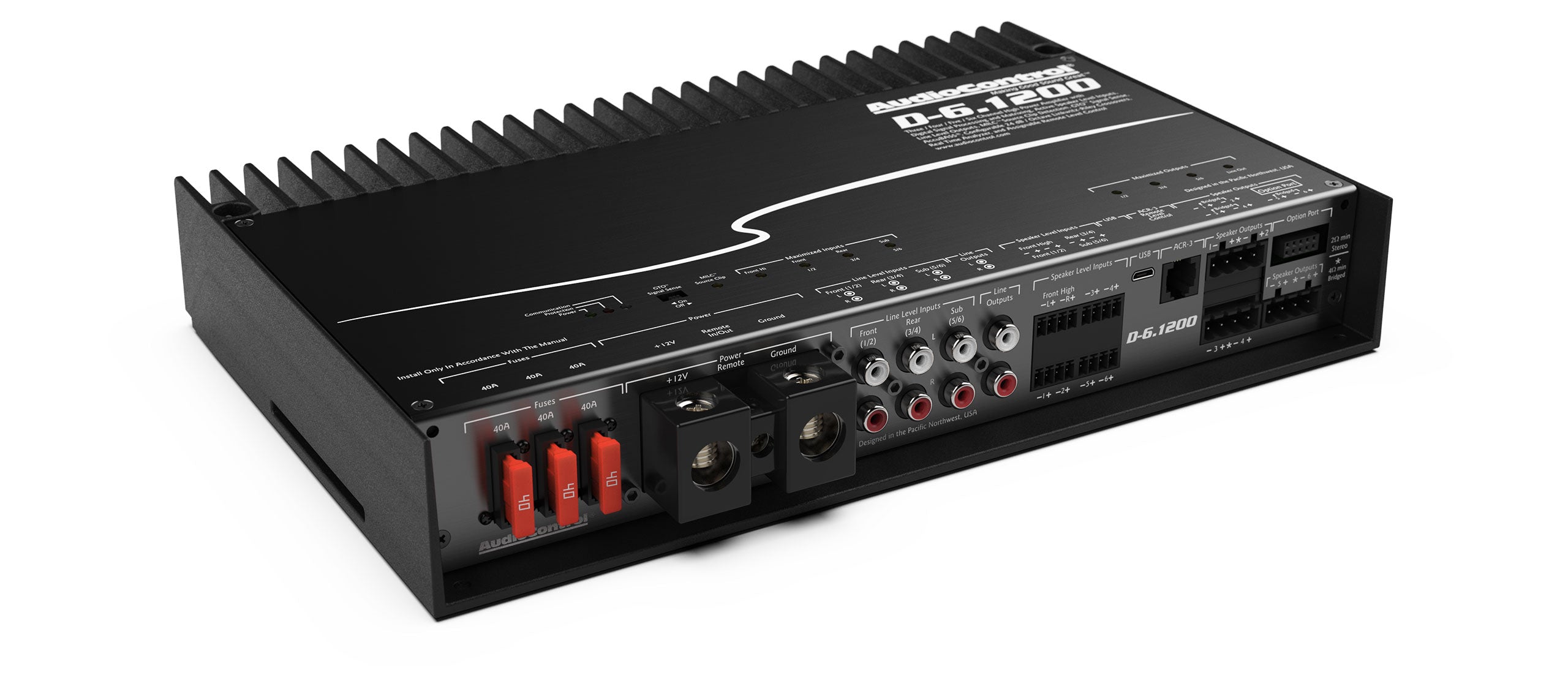

AudioControl D-6.1200 Six-Channel DSP Matrix Amplifier

AudioControl D-6.1200 Six-Channel DSP Matrix Amplifier

£1,227.00 inc VAT

Supply only. One D-6.1200 amplifier with standard connectors and fuses. Remote and wireless streaming accessories are optional. Installation quoted separately.

SKU D-6.1200 Category Tags , , , Brand:

Description

Six amplified channels with Matrix DSP and AccuBASS. Rated 125 W x 6 into 4 ohms or 200 W x 6 into 2 ohms at 14.4 V. Includes eight speaker-level inputs, six line-level inputs and two preamp outputs, with configurable filtering, equalisation and delay.

What is supplied

One D-6.1200 amplifier with standard connectors and fuses. Remote and wireless streaming accessories are optional.

Optional wired level and preset control

The AudioControl ACR-3 wired dash remote is the matching optional controller for this amplifier. It is sold separately and provides remote level control and preset recall. Configure the DSP and controlled outputs for the intended system before use, following the amplifier manual. Order one remote separately only if required. This accessory does not replace correct gain, crossover and speaker-protection settings, and is not a Bluetooth streaming interface.

Compatibility and installation

Minimum normal-channel load is 2 ohms; supported bridged speaker pairs require at least 4 ohms. Set active crossovers before connecting speakers, and verify gain, power handling and signal summing. Requires properly fused power wiring and a compatible tuning computer/software. Vehicle looms, speakers and installation are not included.

Supply and fitting

Supply only. Contact for install price. Required wiring, adapters, mounting work and labour are quoted after assessing your vehicle. We fit equipment supplied by Lehane Autos; customer-supplied parts are not accepted. Physical delivery is calculated at checkout. Collection requires confirmed stock and an appointment.

UK price: £1,227.00 including VAT (£1,022.50 excluding VAT).
