AudioControl ACM-2.300 2-Channel Micro Amplifier

AudioControl ACM-2.300 2-Channel Micro Amplifier

AudioControl ACM-2.300 2-Channel Micro Amplifier

£329.00 inc VAT

Compact two-channel Class D amplifier: 75 W × 2 at 4 ohms, 150 W × 2 at 2 ohms or 300 W bridged at 4 ohms. RCA and speaker-level inputs.

Contact for install price

Installation cost varies with the vehicle, access, system design and required wiring. The product price is supply only unless this listing expressly includes installation. Contact us for a vehicle-specific installation price before ordering fitting. Installation is subject to compatibility and installation circumstances; additional parts or labour will be agreed before proceeding.

  • Installation quote and wiring *

    Installation Contact for install price — send your vehicle make, model, year and system details.
    Wiring for amplified systems Stinger Select SSK8 amplifier wiring kit — an option for suitable amplified systems. Confirm cable gauge, current draw, fuse rating, cable length and kit contents before ordering. Some active subs include wiring; ordinary speaker replacement may instead require vehicle-specific speaker adapters or harnesses. Contact us to select the correct kit.

Product total

Options total

Grand total

SKU ACM-2.300 Categories , Brand:

Description

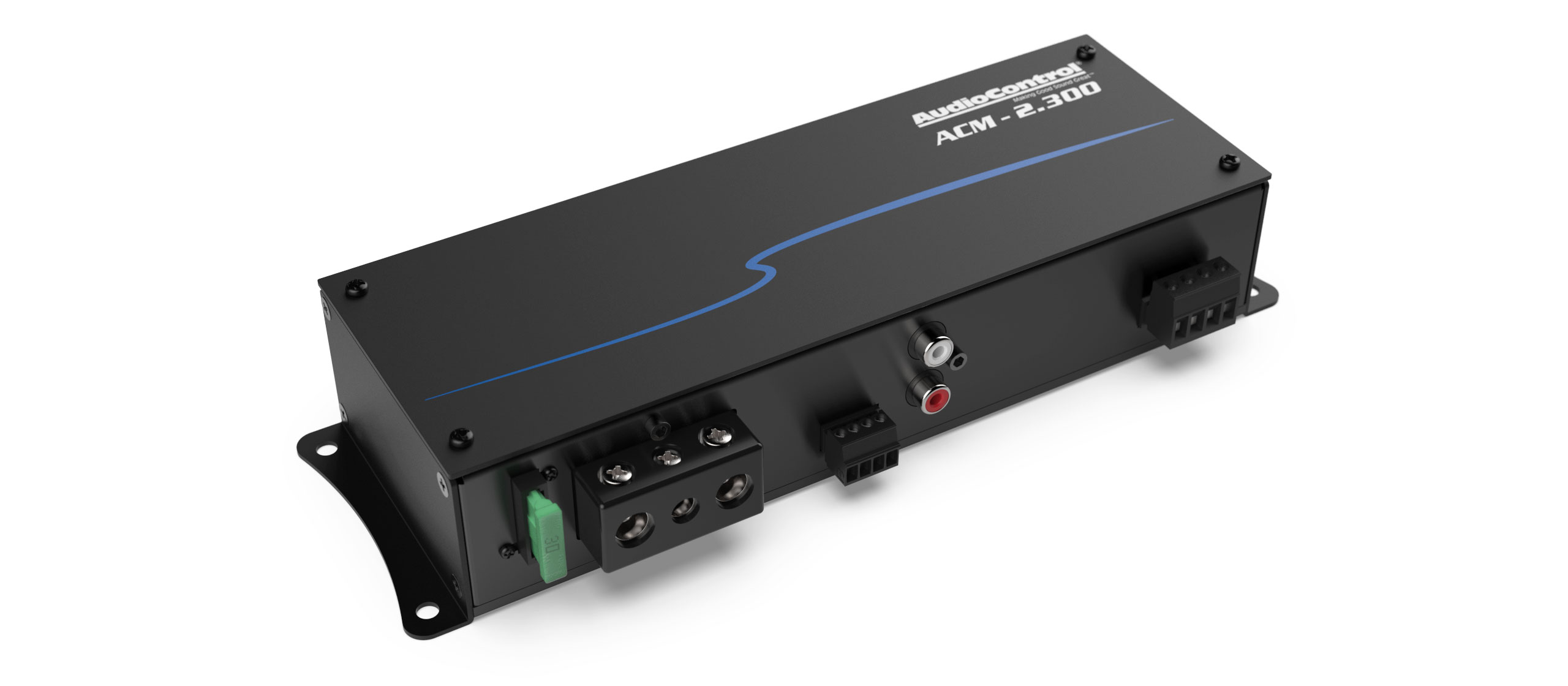

The AudioControl ACM-2.300 is a compact two-channel amplifier for a correctly matched speaker or bridged subwoofer installation.

  • Rated RMS output at 14.4 V: 75 W × 2 at 4 ohms; 150 W × 2 at 2 ohms; 300 W bridged at 4 ohms
  • RCA and speaker-level inputs; speaker-level range 3–40 V
  • GTO signal-sensing turn-on
  • 80 Hz / 120 Hz / bypass crossover selection, 12 dB/octave Linkwitz-Riley
  • 32 Hz subsonic filter
  • Compact reversible cover-plate design

Use a minimum 2-ohm load per channel or 4-ohm bridged load. This is an amplifier, not a full DSP processor. Power wiring, fusing and vehicle integration are separate.

Installation and delivery

Contact for install price. Supply only. Power wiring, fusing, signal integration, adapters and installation labour are separate. Confirm vehicle details, speaker/subwoofer impedance and amplifier requirements before ordering. Additional work is quoted and agreed before fitting.

Prices include VAT. Delivery charges apply to shipped physical products at checkout. Workshop collection is available only after stock and an appointment are confirmed.

UK price: £329.00 including VAT (£274.17 excluding VAT).
