Alpine X903D-DU Vehicle-Specific 9-inch Navigation for Selected Ducato, Boxer & Jumper

Alpine X903D-DU Vehicle-Specific 9-inch Navigation for Selected Ducato, Boxer & Jumper

£1,899.30 inc VAT

Supply only: selected Ducato/Boxer/Jumper with original 1-DIN or radio preparation and ISO/Mini-ISO. Not Ducato 8/9. Fitment check and installation quotation required.

Optional Alpine remote control

  • Add an Alpine RUE-4360 remote control *

    Optional Alpine RUE-4360 handheld remote, sold separately. Alpine lists this remote for this receiver. Functions depend on the receiver and selected source. This is not a vehicle steering-wheel-control adapter. Leave No remote selected if it is not required.

Add a compatible Alpine DAB aerial?

Optional Alpine KAE-242DA aerial hardware for this DAB receiver. It is suitable only where the windscreen and cable route meet Alpine’s installation requirements. This is not a vehicle fitting kit, an AM/FM aerial adapter or confirmation of vehicle compatibility. Aerial fitting and any additional parts are separate; standard stereo installation does not include DAB-aerial fitting. We fit equipment supplied by Lehane Autos, not customer-supplied parts.

  • Optional Alpine KAE-242DA DAB screen aerial *

    Choose only after confirming an unheated, non-reflective-coated windscreen with enough space for the full 170 mm element and at least 40 mm clearance from vehicle body metal. Alpine does not permit this aerial on heated or reflective-coated screens. The element cannot be shortened or removed and reused. The supplied 3.5 m cable has an angled femaleSMB plug and needs a safe route clear of airbags, controls and the driver’s view. This active aerial is receiver-phantom-powered(5–12 V, 30 mA); the receiver’s DAB antenna power must be set appropriately. It is separate from any supplied AM/FM adapter. If glass type, clearance, cable reach or installation is uncertain, choose no aerial and ask for advice.

  • Vehicle and windscreen details for the aerial check *

    Give make, model, year, windscreen type (heated or reflective coating), available clear mounting area and whether a compatible DAB aerial is already fitted. Confirm that the full 170 mm element can be mounted at least 40 mm from body metal with a safe 3.5 m cable route. Do not select this aerial where the glass or installation requirements do not match.

  • I confirm the windscreen and installation requirements above can be met. This adds aerial hardware only; it does not guarantee reception or include installation. DAB-aerial fitting is separate from stereo installation and must be agreed before work. Existing suitable aerials and adapters must be assessed to avoid duplicate parts. We fit Lehane-supplied equipment only.

Add an Alpine direct-connection rear camera?

Optional camera hardware for this Alpine receiver. This establishes receiver compatibility, not automatic vehicle fitment. Camera installation and any extra mounting parts or cable extensions are quoted separately after vehicle assessment.

  • Optional Alpine rear camera *

    Alpine HCE-C2100RD provides rear, panorama, top and corner views through this receiver's direct camera connection. The supplied camera cable set totals 10.5 m. This is a mirrored NTSC composite parking camera, not an HD recording camera. Use the Alpine direct-camera input and supplied camera cables as the manuals specify. Camera supply is 6 V nominal (5-9 V allowable): never connect the camera directly to vehicle 12 V. No KWE-CAM1D RCA adapter or KCX-C250MC switchbox is required or included. Confirm mounting position, weatherproof cable routing, cable length, reverse trigger and settings before installation. This does not retain or adapt an existing factory camera.

  • Vehicle details for the camera assessment *

    Enter make, model, year, body style, intended camera position and whether the vehicle already has a factory camera. We must confirm physical installation, cable route and reverse activation; extra housing, wiring or extension parts may be needed.

  • This selection adds camera hardware only. Vehicle mounting and any extra parts require confirmation. Camera installation is separately quoted and is not covered by standard stereo or DAB-aerial fitting. We fit equipment supplied by Lehane Autos. A reversing camera is a driver aid and does not replace checking around the vehicle.

Product total

Options total

Grand total

Description

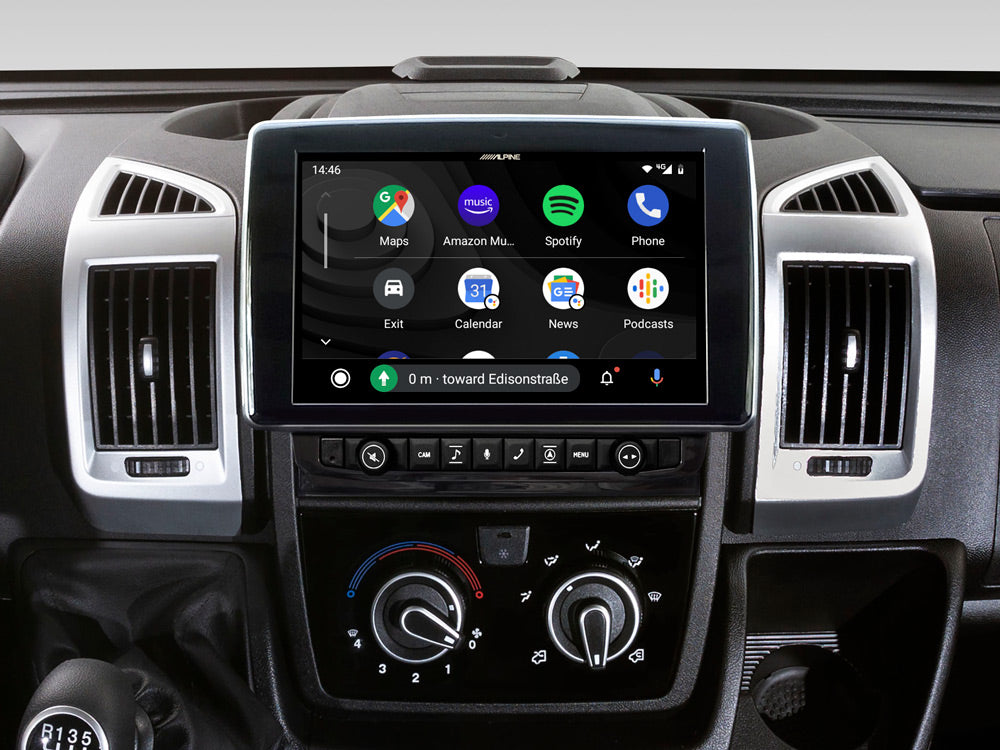

Vehicle-specific Alpine X903D-DU navigation system with a 9-inch touchscreen, physical rotary controls, DAB+, Bluetooth, Apple CarPlay and Android Auto. Includes installation brackets, wiring harness and steering-control interface. One complete stereo system; vehicle and dashboard shown in the photograph are not included.

Defined vehicle scope

For selected Fiat Ducato III 250/290 (June 2006–2021), Citroën Jumper/Relay II and Peugeot Boxer II of the corresponding 250-platform generation. This listing is restricted to original 1-DIN radio or radio-preparation vehicles with matching ISO/Mini-ISO connections, standard non-amplified audio and no original camera requiring retention. Confirm build date, dashboard and connectors before ordering. Not for Ducato 8/9.

Original VP1/VP2/7-inch navigation, 52-pin connectors, Delphi radios, premium audio and other factory configurations are outside this base fitment. Additional OEM integration and, where applicable, a Fiat mounting frame are quoted separately; KIT-DU-OEM is not included. No guarantee of retaining every factory display, driver-assistance or parking function.

DAB reception requires a suitable aerial, quoted separately. Camera hardware and camera-retention adapters are not included. Navigation maps/software and any available update entitlement should be checked during installation; no claim that supplied maps are current.

Compatible camera and remote options

  • Alpine HCE-C2100RD multi-view rear camera: listed by Alpine for this receiver. Follow both installation manuals for the direct-camera connection, reverse signal and view settings. Confirm mounting and cable length; never connect the camera directly to vehicle 12 V power.
  • Alpine KWE-CAM1D RCA camera adapter: an alternative connection for a suitable third-party RCA camera. Check video format, connectors and the camera power supply. This cable provides no power or HD/AHD conversion and is not an extra required with the HCE-C2100RD direct-camera option.
  • Alpine RUE-4360 infrared remote: an optional handset listed for this receiver. Available functions depend on the receiver and selected source.

Existing motorhome camera wiring and any extension or retention adapter need separate checks. Read each accessory page and choose the camera or remote above, or its standalone listing, not both. Receiver and accessory compatibility do not remove the vehicle restrictions above. Mounting parts, extra wiring and installation are quoted separately.

Supply and fitting

Supply only; installation is not included. Contact for install price. We confirm vehicle suitability, required extras and safe screen clearance before quoting labour. We fit equipment supplied by Lehane Autos, not customer-supplied parts. Delivery is calculated at checkout. Collection requires confirmed stock and an appointment.

UK price: £1,899.30 including VAT (£1,582.75 excluding VAT).
