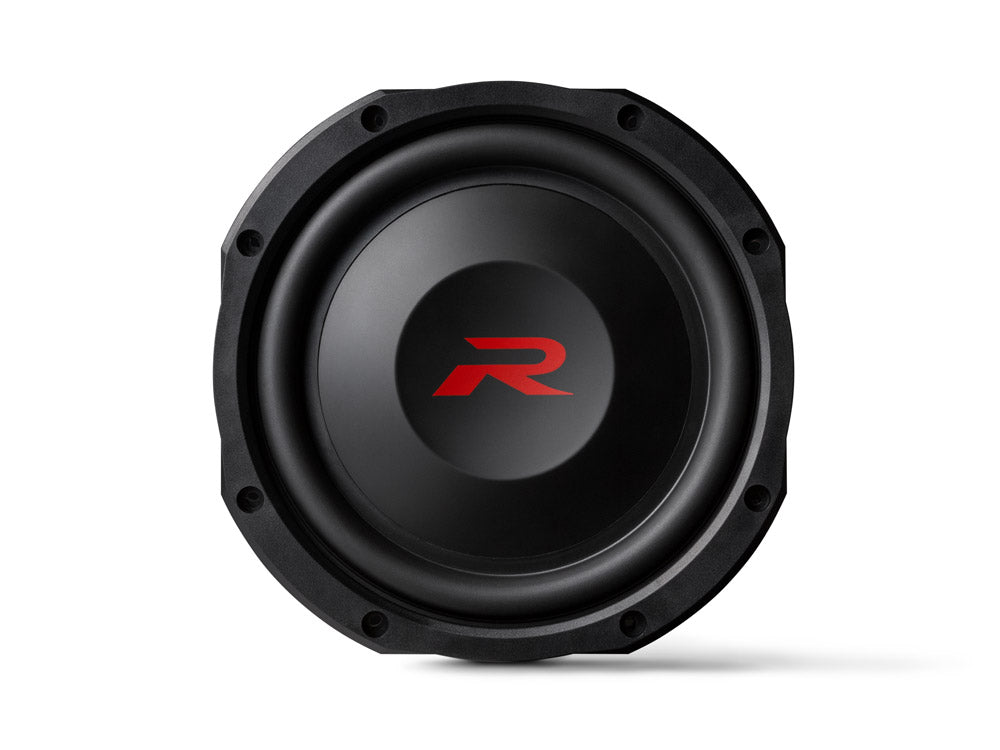

Alpine RS-W10D4 10-inch Dual 4-Ohm Subwoofer

Alpine RS-W10D4 10-inch Dual 4-Ohm Subwoofer

Alpine RS-W10D4 10-inch Dual 4-Ohm Subwoofer

£500.00 inc VAT

Supply only. One Alpine RS-W10D4 passive subwoofer driver. Enclosure, amplifier and installation wiring are not included. Installation quoted separately.

Contact for install price

Installation cost varies with the vehicle, access, system design and required wiring. The product price is supply only unless this listing expressly includes installation. Contact us for a vehicle-specific installation price before ordering fitting. Installation is subject to compatibility and installation circumstances; additional parts or labour will be agreed before proceeding.

  • Installation quote and wiring *

    Installation Contact for install price — send your vehicle make, model, year and system details.
    Wiring for amplified systems Stinger Select SSK8 amplifier wiring kit — an option for suitable amplified systems. Confirm cable gauge, current draw, fuse rating, cable length and kit contents before ordering. Some active subs include wiring; ordinary speaker replacement may instead require vehicle-specific speaker adapters or harnesses. Contact us to select the correct kit.

Product total

Options total

Grand total

SKU RS-W10D4 Category Tags , , , Brand:

Description

10-inch passive subwoofer rated at 600 W RMS/continuous, with two 4-ohm voice coils. Shallow R-Series driver with a cast aluminium frame, aluminium dust cap and neodymium motor. Mounting depth is 81mm. The optional KTE-RS10G grille is not included. With both coils connected correctly, the nominal final load is 2 ohms in parallel or 8 ohms in series; the amplifier must support the chosen load.

What is supplied

One Alpine RS-W10D4 passive subwoofer driver. Enclosure, amplifier and installation wiring are not included.

Compatibility and installation

Bare passive subwoofer for a custom enclosure, not an active bass box or vehicle-specific direct-fit kit. Enclosure volume, mounting aperture/depth, cone clearance, amplifier power, final impedance and filtering must be checked before installation. Do not connect directly to an ordinary head-unit speaker output. Vehicle wiring, enclosure fabrication and labour are additional. Professional installation and correct gain/filter settings are recommended.

Supply and fitting

Supply only. Contact for install price. Required wiring, adapters, mounting work and labour are quoted after assessing your vehicle. We fit equipment supplied by Lehane Autos; customer-supplied parts are not accepted. Physical delivery is calculated at checkout. Collection requires confirmed stock and an appointment.

UK price: £500.00 including VAT (£416.67 excluding VAT).
