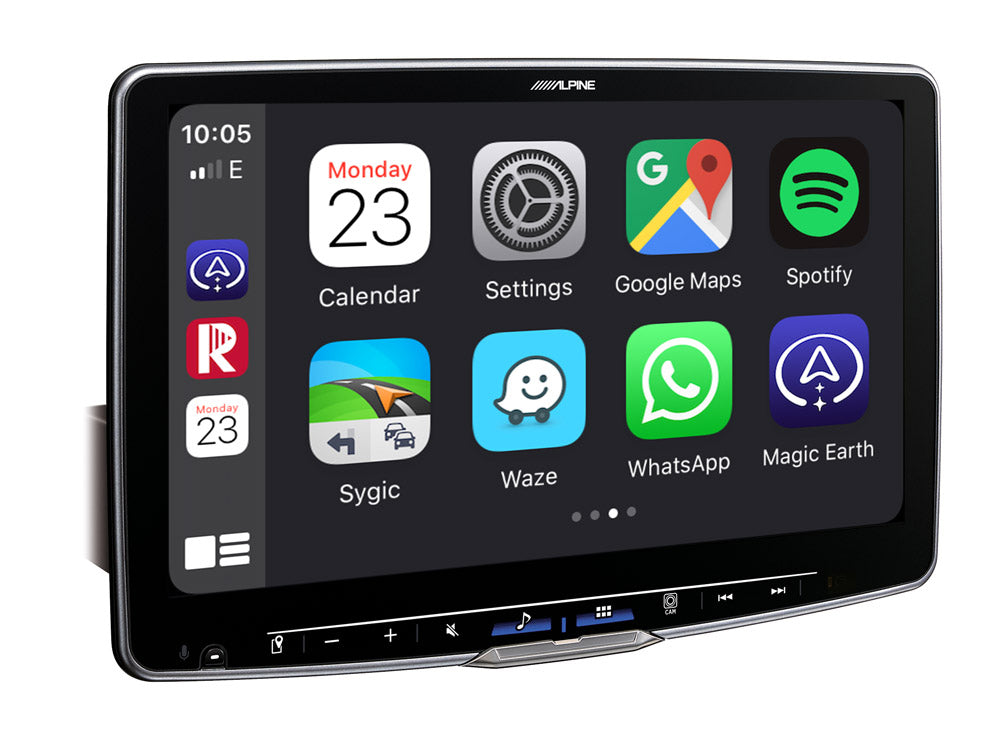

Alpine ILX-F115D Halo11 Floating Screen — Wireless CarPlay, DAB & Android Auto

Alpine ILX-F115D Halo11 Floating Screen — Wireless CarPlay, DAB & Android Auto

Price range: £1,159.20 through £1,351.20 inc VAT

11-inch capacitive 1280 × 720 touchscreen, wireless Apple CarPlay, wired Android Auto, DAB+ digital radio and Bluetooth.

Supply only or optional standard installation. Vehicle fitting parts are separate.

  • Adds £48 including VAT (£40 excluding VAT) for 0.5 hour of DAB aerial fitting. Labour only. Aerials, adapters and other hardware are charged separately unless expressly included in the selected product or option. Available with standard Swansea workshop installation of equipment supplied by Lehane Autos, subject to vehicle compatibility and condition. We do not fit customer-supplied parts. Any additional diagnostics, parts or labour will be explained and agreed before proceeding.

Optional Alpine remote control

  • Add an Alpine RUE-4360 remote control *

    Optional Alpine RUE-4360 handheld remote, sold separately. Alpine lists this remote for this receiver. Functions depend on the receiver and selected source. This is not a vehicle steering-wheel-control adapter. Leave No remote selected if it is not required.

Add an Alpine direct-connection rear camera?

Optional camera hardware for this Alpine receiver. This establishes receiver compatibility, not automatic vehicle fitment. Camera installation and any extra mounting parts or cable extensions are quoted separately after vehicle assessment.

  • Optional Alpine rear camera *

    Alpine HCE-C2100RD provides rear, panorama, top and corner views through this receiver's direct camera connection. The supplied camera cable set totals 10.5 m. This is a mirrored NTSC composite parking camera, not an HD recording camera. Use the Alpine direct-camera input and supplied camera cables as the manuals specify. Camera supply is 6 V nominal (5-9 V allowable): never connect the camera directly to vehicle 12 V. No KWE-CAM1D RCA adapter or KCX-C250MC switchbox is required or included. Confirm mounting position, weatherproof cable routing, cable length, reverse trigger and settings before installation. This does not retain or adapt an existing factory camera.

  • Vehicle details for the camera assessment *

    Enter make, model, year, body style, intended camera position and whether the vehicle already has a factory camera. We must confirm physical installation, cable route and reverse activation; extra housing, wiring or extension parts may be needed.

  • This selection adds camera hardware only. Vehicle mounting and any extra parts require confirmation. Camera installation is separately quoted and is not covered by standard stereo or DAB-aerial fitting. We fit equipment supplied by Lehane Autos. A reversing camera is a driver aid and does not replace checking around the vehicle.

Optional VW Group fitting kit or wiring interface — exact application confirmation required

Choose ONE alternative component route below. The vehicle ranges and radio requirements are different. KIT-HALO-VW303 route ONLY (existing applications and restrictions unchanged): For Alpine iLX-F115D only. Selected Volkswagen applications: Amarok 2H (03/2010–08/2016), Beetle 5C (11/2011–05/2016), Caddy 2K/2KN (2010–05/2015), EOS 1F (05/2006–05/2015), Passat B7 type 36 (11/2010–10/2014), Polo 6R (06/2009–03/2014), T5 facelift 7H/7E/7J (09/2009–06/2015) and T6 7H/7E/7J (07/2016–09/2019). Only with a white multifunction display, original radio without a CAR button, matching dashboard and Quadlock, standard unamplified audio and no original reversing camera. Confirm the exact chassis, production date and factory equipment before ordering. T6 installation requires modification of the centre of the original radio cover; agree the work with the installer first. For T5/T6, the original radio must have rounded corners and the vehicle must not have eCall. This option does not cover T6.1 or earlier T6 production pending exact confirmation. The larger 11-inch screen needs its own physical clearance check; approval for a smaller screen does not establish fit. Manufacturer kit compatibility does not certify screen clearance on your dashboard. Before ordering, provide dashboard photos and obtain installer confirmation of mounting position, ventilation and unobstructed airbags, hazard switch, controls, gauges, warning indicators, driver view and gear/steering movement. Do not install if safe clearance cannot be achieved. Direct Alpine CAN-UART is included; no universal patch lead is needed. No original USB socket retention: USB1 supports data/Android Auto, USB2 charging only. DAB aerial is separate. Existing stereo installation option remains subject to its scope; aerial installation, coding and extra work are not automatically included. APF-X320MIB alternative WIRING/INTERFACE component route: Volkswagen Golf VII AU (08/2012–05/2020); Volkswagen Passat B8 3G (07/2014–05/2019); Volkswagen Polo V 6C (04/2014–08/2017); Volkswagen Polo VI AW (11/2017–05/2021); SEAT Leon 5F (11/2012–01/2020); Skoda Octavia III 5E (02/2013–01/2020). Only the listed applications with an original MIB/MIB2 radio with a CAR button, matching original Quadlock connector, 12 V negative-earth electrics and standard UNAMPLIFIED audio are included. No eCall/emergency-call system, Active Info Display/digital instrument cluster, electric or hybrid vehicle, factory sound system, original reversing camera, traffic-sign recognition or other essential function requiring unverified retention. Confirm the exact chassis, production month, original radio and complete factory equipment. If any required function cannot safely be retained, select no component and obtain a separate assessment. APF-X320MIB is an electrical interface and supplied vehicle wiring harness, with original-USB-port adapter and microphone connection cable where the vehicle and receiver support them. It is NOT a fascia, mounting kit or complete installation package. Separate exact fascia/brackets, safely secured receiver/display mounting, AM/FM/DAB/GPS aerial connections, any additional retention parts, coding and labour must be assessed and quoted. Follow Alpine manual v3.00, including the mandatory speed-output connection and the correct receiver-specific UART/wiring chart. No universal patch lead is required for this direct Alpine interface. USB1 is the data/Android Auto connection on iLX-705D/F905D/F115D; USB2 is charging only. Do not promise every factory USB/AUX, microphone, menu, parking display or steering-button function: verify each actual function and supplied connector. The original-USB and microphone adapters do not supply a missing vehicle socket or microphone. The existing model-specific floating-screen clearance and safe-mounting requirements apply to BOTH component routes. Choose no more than one of these alternative component routes. Never add APF-X320MIB on top of KIT-HALO-VW303 or a package already containing its interface. Check the actual supplied parts before charging for any further interface, patch lead, aerial adapter or labour. Existing stereo installation options remain unchanged and do not automatically include every part, coding or non-standard fitting work. Lehane fits only equipment it supplies; customer-supplied parts are not accepted. For BOTH component routes, the larger 11-inch screen needs its own physical clearance check; approval for a smaller screen does not establish fit. For BOTH component routes, dashboard and connector photos and a physical installer trial-fit are required before approval. Before installation, a qualified installer must verify screen height/depth/tilt, secure mounting, ventilation and no obstruction of airbags, hazards, controls, gauges/warning indicators, driver view or gear/steering travel. Do not fit if no safe position exists.

  • Optional VW Group fitting kit or wiring interface (exact listed applications only) *

    For KIT-HALO-VW303 ONLY: KIT-HALO-VW303 includes mounting parts, direct Alpine CAN-UART and AM/FM adapter. Follow exact Alpine mounting/interface instructions including speed output, correct supplied fixings and ventilation. A safe screen position must be verified on the actual dashboard; no universal clearance or factory-function retention is promised. No factory USB retention or DAB aerial is included. T6 requires centre modification of the original radio cover; agree this before work. T5/T6 must have an original rounded-corner radio and no eCall. For APF-X320MIB ONLY: APF-X320MIB is an electrical interface and supplied vehicle wiring harness, with original-USB-port adapter and microphone connection cable where the vehicle and receiver support them. It is NOT a fascia, mounting kit or complete installation package. Separate exact fascia/brackets, safely secured receiver/display mounting, AM/FM/DAB/GPS aerial connections, any additional retention parts, coding and labour must be assessed and quoted. Follow Alpine manual v3.00, including the mandatory speed-output connection and the correct receiver-specific UART/wiring chart. No universal patch lead is required for this direct Alpine interface. USB1 is the data/Android Auto connection on iLX-705D/F905D/F115D; USB2 is charging only. Do not promise every factory USB/AUX, microphone, menu, parking display or steering-button function: verify each actual function and supplied connector. The original-USB and microphone adapters do not supply a missing vehicle socket or microphone. The existing model-specific floating-screen clearance and safe-mounting requirements apply to BOTH component routes. Choose no more than one of these alternative component routes. Never add APF-X320MIB on top of KIT-HALO-VW303 or a package already containing its interface. Check the actual supplied parts before charging for any further interface, patch lead, aerial adapter or labour. Existing stereo installation options remain unchanged and do not automatically include every part, coding or non-standard fitting work. Lehane fits only equipment it supplies; customer-supplied parts are not accepted. For BOTH component routes, the larger 11-inch screen needs its own physical clearance check; approval for a smaller screen does not establish fit. For BOTH component routes, dashboard and connector photos and a physical installer trial-fit are required before approval. Before installation, a qualified installer must verify screen height/depth/tilt, secure mounting, ventilation and no obstruction of airbags, hazards, controls, gauges/warning indicators, driver view or gear/steering travel. Do not fit if no safe position exists.

  • Optional separate Alpine DAB aerial *

    KAE-242DA is a separate active DAB aerial, not included in the kit or receiver. Check glass suitability, earth connection, reception and airbag-safe cable routing; enable DAB Antenna Power for this active aerial. An existing antenna needs its own verified connection; the AM/FM adapter does not retain DAB. Aerial installation is not automatically included in the standard stereo fitting charge.

  • Vehicle, original radio and exact component-route details for confirmation *

    If selecting KIT-HALO-VW303 ONLY: Give the Volkswagen model and chassis; confirm production month/year, white MFD, original radio without CAR, standard unamplified audio and no original camera. Describe dashboard vents, hazard/HVAC controls, gauges, gear selector and steering movement; dashboard and connector photos and physical installer trial-fit are required before approval. Tell us if factory USB retention is wanted: it is not included. For T5/T6, confirm the original rounded-corner radio and absence of eCall. For T6, confirm you have discussed the necessary radio-cover modification with the installer. Selection alone does not confirm fitment. For APF-X320MIB instead: provide one of the six listed model/chassis/production-date combinations, the exact original MIB/MIB2 CAR-button radio, connector and dashboard photos, steering side, and all original functions needing retention. Confirm no eCall, AID/digital cluster, electric/hybrid powertrain, factory amplifier, original camera or traffic-sign recognition. Identify original USB/AUX and microphone equipment. Confirm a separately verified fascia/bracket/mounting solution and aerial connections; the interface itself contains no fascia or mounting hardware. Screen clearance and safe control/airbag visibility still require installer assessment. If this configuration cannot be confirmed, select no component.

  • If selecting KIT-HALO-VW303 ONLY: This is a conditional component option, not a guarantee of safe fit on every listed Volkswagen dashboard. Before installation, a qualified installer must verify screen height/depth/tilt, secure mounting, ventilation and no obstruction of airbags, hazards, controls, gauges/warning indicators, driver view or gear/steering travel. Do not fit if no safe position exists. Factory USB retention and universal factory-function retention are not included. Existing stereo labour is charged only once where selected; aerial installation, coding, extra parts or work may require a separate quote. T6 radio-cover modification and any extra work must be agreed before installation. T5/T6 with eCall, a non-matching radio opening, T6.1 or T6 production before July 2016 are outside this option. For APF-X320MIB instead, I understand this is only the wiring/interface component for the six listed CAR-button MIB/MIB2 applications, with all stated exclusions. A separate vehicle-specific fascia/bracket solution, secure and unobstructed screen mounting, aerial connections, any additional parts, coding and installation require assessment and quotation. Original functions and USB/microphone equipment must be checked individually; no complete retention or complete fitting package is promised. I must not select this interface in addition to another interface-containing fitting kit. Existing stereo fitting is not charged twice, and customer-supplied parts are not accepted.

Find the right parts for your vehicle

Can't see your vehicle in the options on this page? Browse the categories below, then ask us to confirm the exact parts for your vehicle's make, model, year, dashboard, original radio and factory equipment. These are catalogue links, not a list of compatible parts. Do not add a component already included in a selected kit or option.

Product total

Options total

Grand total

SKU LEH-ALP-ILX-F115D Category Brand:

Description

11-inch capacitive 1280 × 720 touchscreen, wireless Apple CarPlay, wired Android Auto, DAB+ digital radio and Bluetooth. Upgrade your in-car navigation, calls and music using a compatible smartphone.

  • Built-in Class-D amplifier, rated at 4 × 50 W maximum.

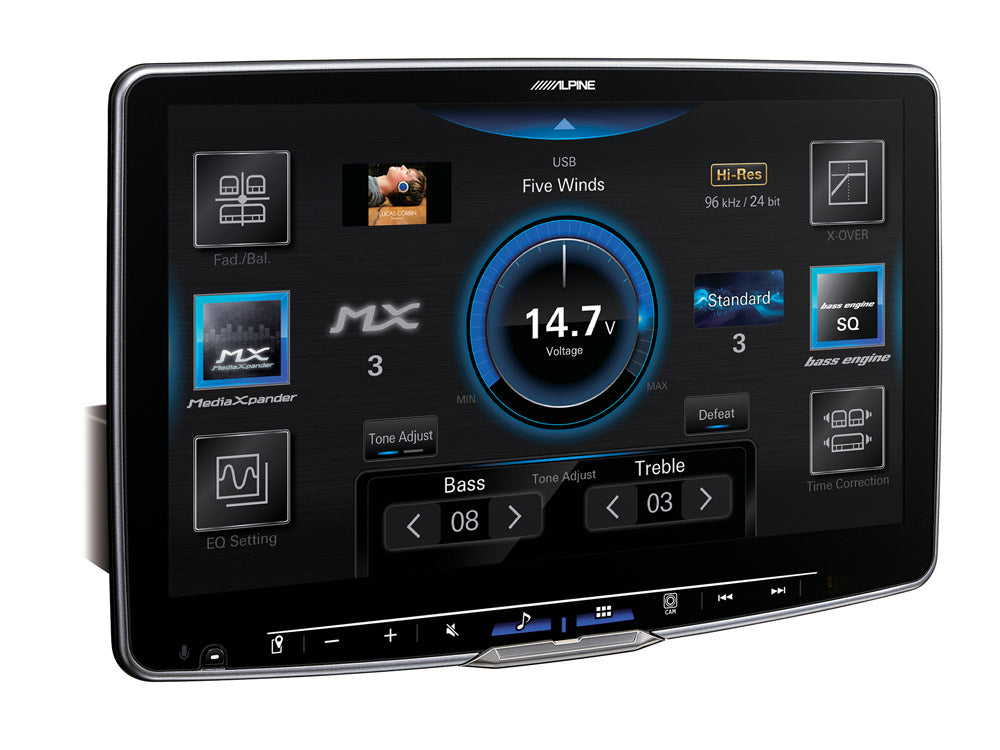

  • Parametric equaliser, digital time correction and crossover adjustment.
  • USB media playback, HDMI connectivity and compatible camera connections.

Compatible camera and fitting options

The Alpine HCE-C2100RD multi-view rear camera is listed by Alpine for this receiver. It uses the Alpine direct-camera system and is not a universal RCA camera. Follow the camera and receiver installation manuals for connections, supplied cables, reverse signal and view settings. Never connect the camera directly to vehicle 12 V power. Confirm mounting position and sufficient cable length before ordering.

The Alpine KIT-HALO-VW303 fitting kit supports this receiver in its listed VW, SEAT and Skoda MIB-PQ applications. It requires a white multifunction display, excludes original radios with a CAR button and does not retain original RGB cameras. Check the kit page, exact vehicle equipment and screen clearance; this is not a universal fitting kit.

Where only the interface is needed, the Alpine APF-X303VW interface supports this receiver in compatible MIB-PQ vehicles. Confirm the exact vehicle and factory radio first. KIT-HALO-VW303 already includes an interface, so do not order both for the same installation. Fascia, mounting and fitting remain separate.

Read the accessory details before selecting above. Do not also order a standalone camera or kit if already selected or included in your package. A new camera is optional if a compatible existing camera is retained. Camera fitting, extra parts and coding are separate from the standard stereo-installation allowance unless expressly agreed.

Volkswagen T6.1 fitting option

The Alpine KIT-F9VW-T61 fitting kit is listed for this receiver in Volkswagen T6.1 type 7H / 7J vehicles from 11/2019 to 2022. Confirm the original radio, vehicle equipment and screen clearance before ordering. Factory eCall needs an additional compatible retention interface, and some vehicle menus may be lost or operated differently. Alpine’s installation instructions require professional fitting and dashboard drilling.

This is a different vehicle application from KIT-HALO-VW303: choose only the kit confirmed for your vehicle. Read the kit details and obtain fitment confirmation first. Do not buy another kit if already included in a receiver package. Kit hardware, eCall parts, coding and installation labour are separate unless expressly included.

Adapter for a suitable RCA camera

Alpine lists the KWE-CAM1D RCA camera adapter for this receiver. Use it when a suitable third-party camera needs an RCA video connection to the Alpine Direct Camera Input. Confirm the camera video format, connectors, power supply and reverse-signal wiring before ordering. The cable provides no camera power, voltage conversion or HD/AHD conversion.

This adapter is for an RCA-camera setup; it is not an extra required with the HCE-C2100RD direct-camera option. Check any existing camera or vehicle fitting-kit connections first, and do not buy a duplicate adapter. Installation and any further parts are separate.

Optional infrared remote

The Alpine RUE-4360 remote control is listed by Alpine for this receiver. Available controls depend on the receiver and selected source. Read the handset details before choosing it above, and do not also buy the standalone listing if already selected. Vehicle steering-wheel controls still need their own suitable interface.

Interface for selected MIB/MIB2 vehicles

The Alpine APF-X320MIB CAN-to-UART interface is listed for this receiver in selected VW, SEAT and Skoda MIB/MIB2 vehicles with an original CAR-button radio. Confirm the exact model year, radio and fitted equipment before selecting it. Alpine excludes emergency-call systems, electric or hybrid vehicles, Active Info Display instruments and factory sound systems. Traffic-sign recognition is not retained.

This supplies the interface and its connection harnesses, not a complete fascia or mounting kit. Its vehicle application differs from KIT-HALO-VW303. Read the interface details, choose the solution confirmed for your vehicle and avoid buying another interface if a fitting kit or package already includes the required one. Vehicle menus and functions vary; installation, coding and extra parts are separate unless expressly included.

Optional DAB windscreen aerial

The Alpine KAE-242DA active DAB aerial is a suitable optional aerial for this receiver. Read the aerial page and confirm windscreen suitability, cable routing and the receiver aerial-power setting before selecting it above. It cannot be used on heated or reflective-coated windscreens.

Check whether a suitable DAB aerial is already installed or included in your package. Do not also order the standalone aerial if already selected here. Reception depends on the vehicle, installation and local coverage; aerial fitting and additional parts are separate unless expressly included.

Vehicle compatibility and installation

A dedicated vehicle-specific mounting kit is required. The single-DIN chassis does not make this a conventional single-DIN stereo. Check screen clearance around vents, switches and controls; secure dashboard mounting is essential.

Choose supply only or standard Swansea workshop installation. The installation option adds £192 including VAT (£160 excluding VAT) for two hours of labour. Vehicle-specific fascias, mounting kits, CAN/steering-wheel interfaces, aerial adapters, DAB aerials and other required parts are charged separately. Please confirm your vehicle, model year and original stereo before booking. Complex installations or additional work may incur extra charges, agreed before work proceeds.

Phone, vehicle and accessory compatibility must be checked. DAB reception requires a suitable aerial; cameras are optional accessories.

UK price by option: £1,159.20–£1,351.20 including VAT (£966.00–£1,126.00 excluding VAT). Price varies by the option selected.

UK prices including and excluding VAT
  • Installation: Supply only — £1,159.20 including VAT (£966.00 excluding VAT).
  • Installation: Standard workshop installation — £1,351.20 including VAT (£1,126.00 excluding VAT).

Additional information

Installation

Supply only, Standard workshop installation
